SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Choice: yes

High-concerned chemical: None

Model Number: Waterproof Power Supply

Origin: Mainland China

Output Current: 0-25A

Output Frequency: 50-60Hz

Output Power: 150-500（include500）

Output Type: SINGLE

Rated Capacity: ＜40VA

Type: Power Supply

Use: Telecommunications

is_customized: Yes

semi_Choice: yes

Specifications:

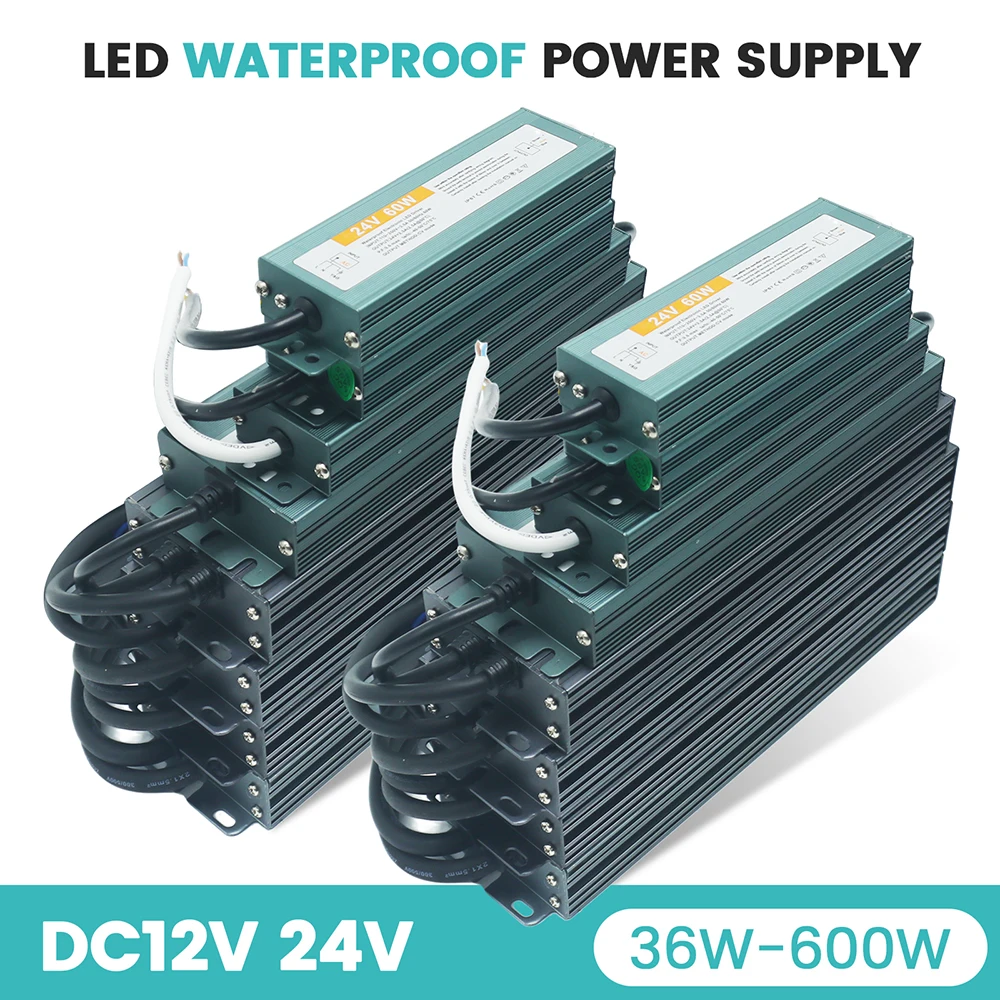

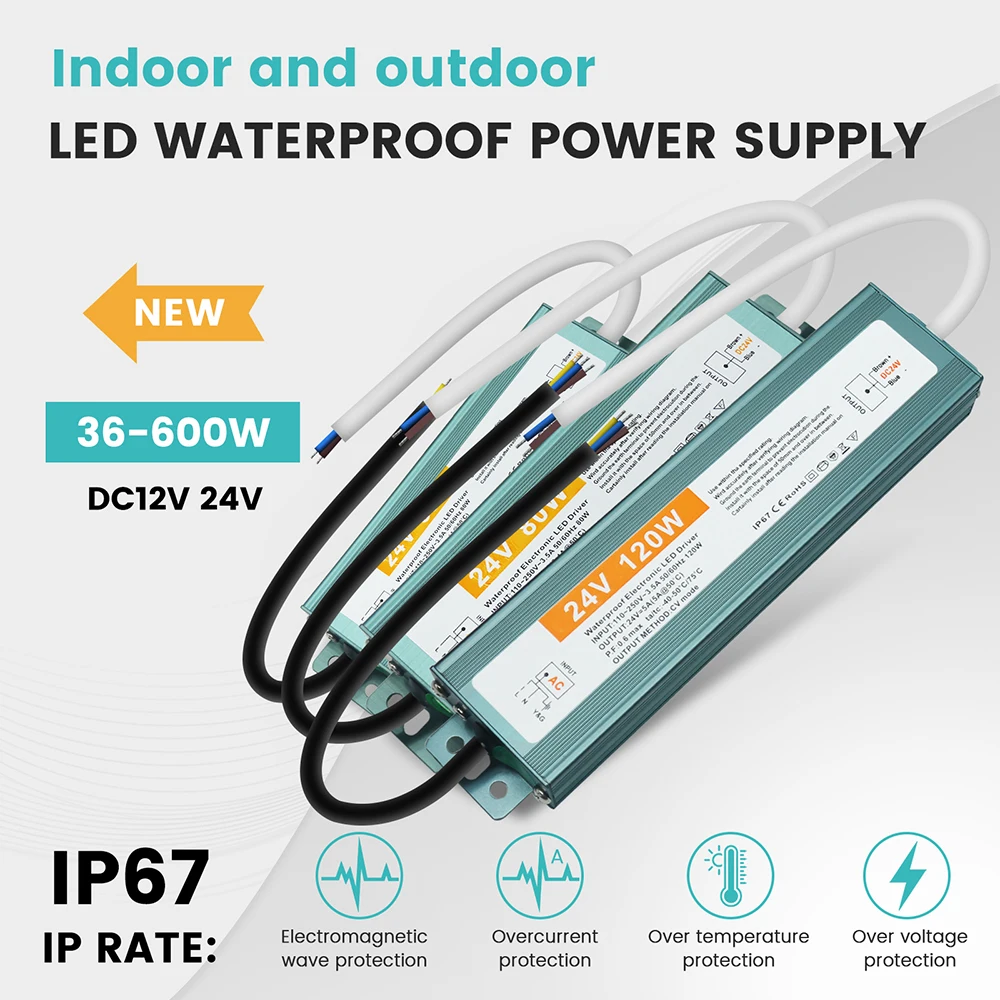

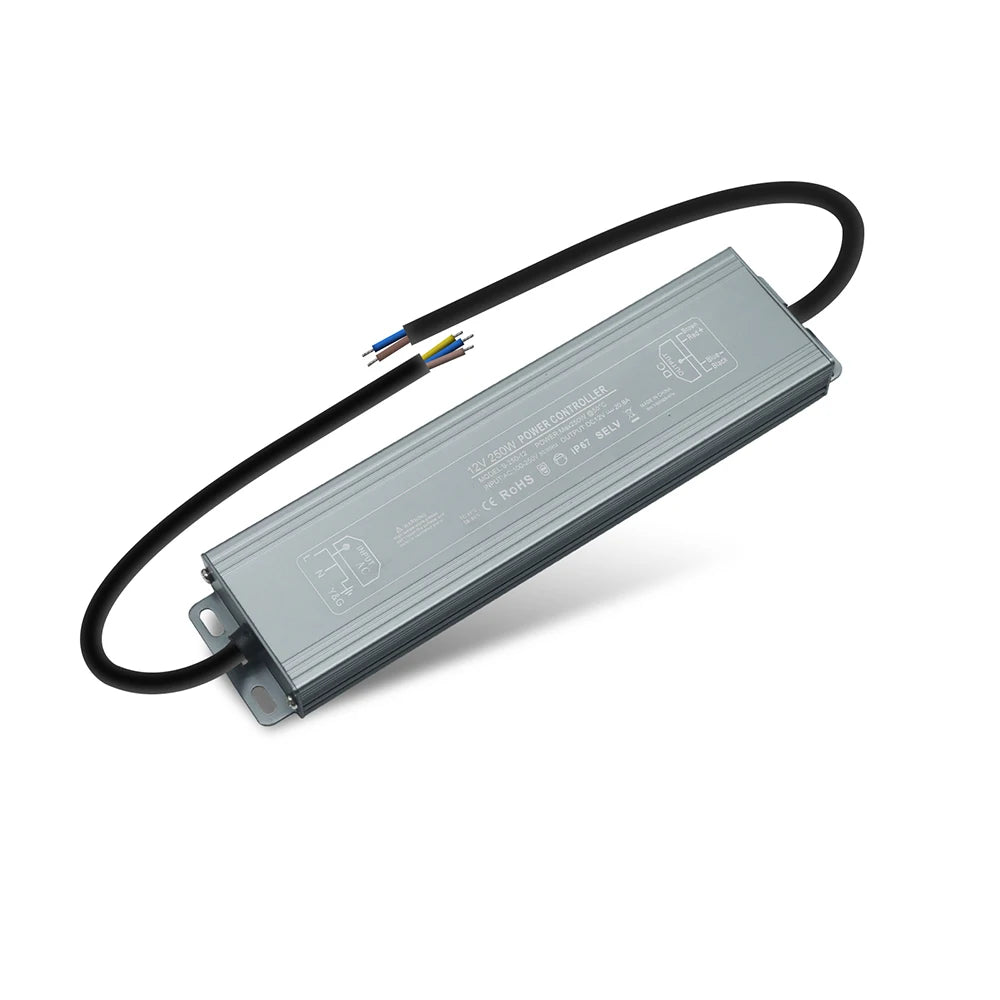

Product Name: Wide Voltage IP67 Waterproof Power Supply

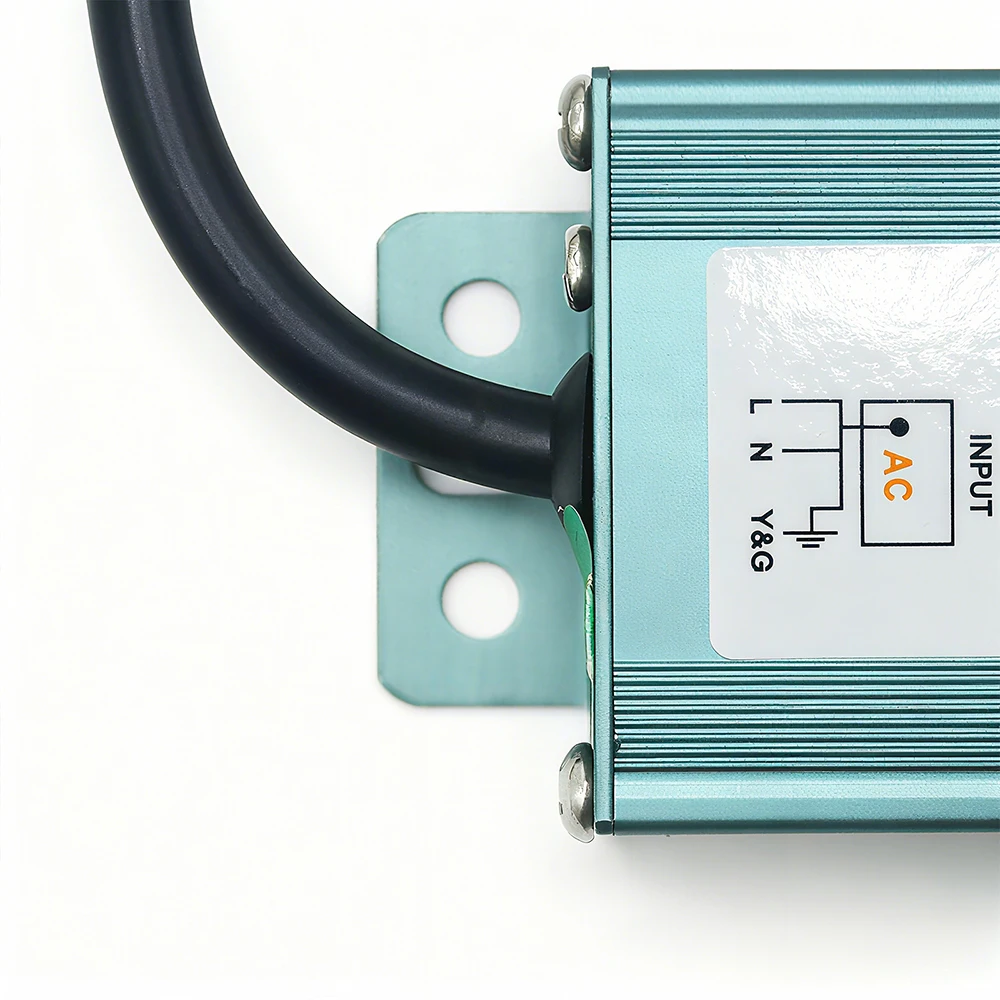

Input Voltage: AC 110-250V (Universal Input)

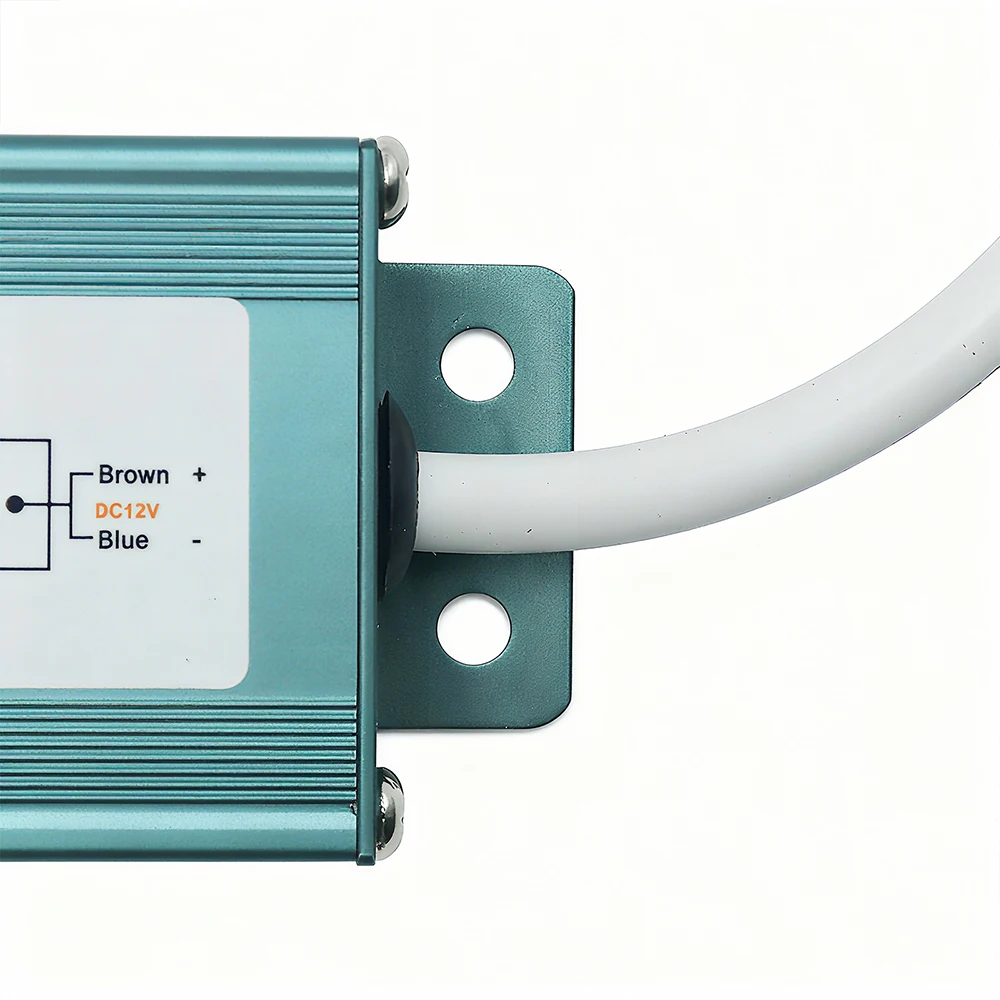

Output Voltage: Selectable 12V / 24V DC

Ingress Protection: IP67 Rated (Dust-tight and Waterproof)

Operating Temperature: -20°C to +50°C

Storage Temperature: -40°C to +85°C

Safety Protections: Over-Current (OCP), Short-Circuit (SCP), Over-Voltage (OVP)

Installation: Equipped with mounting holes for easy and secure fixing.

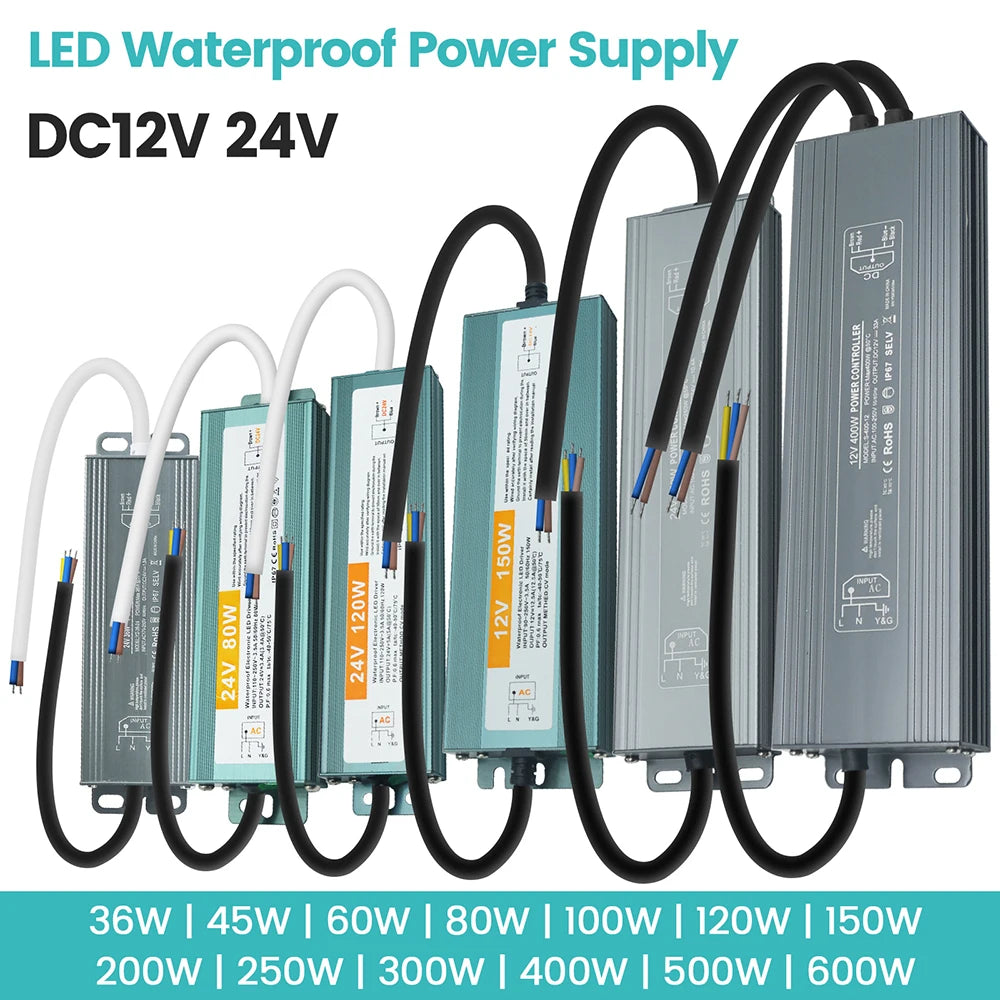

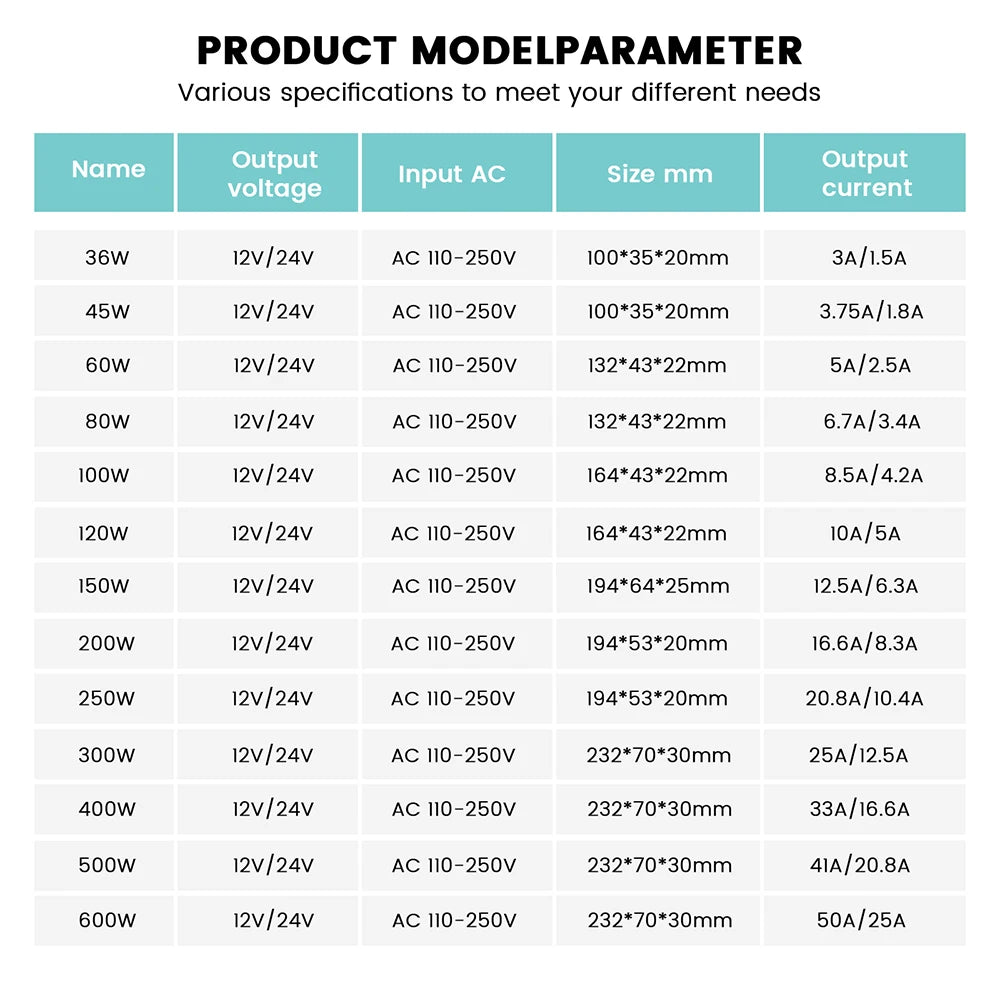

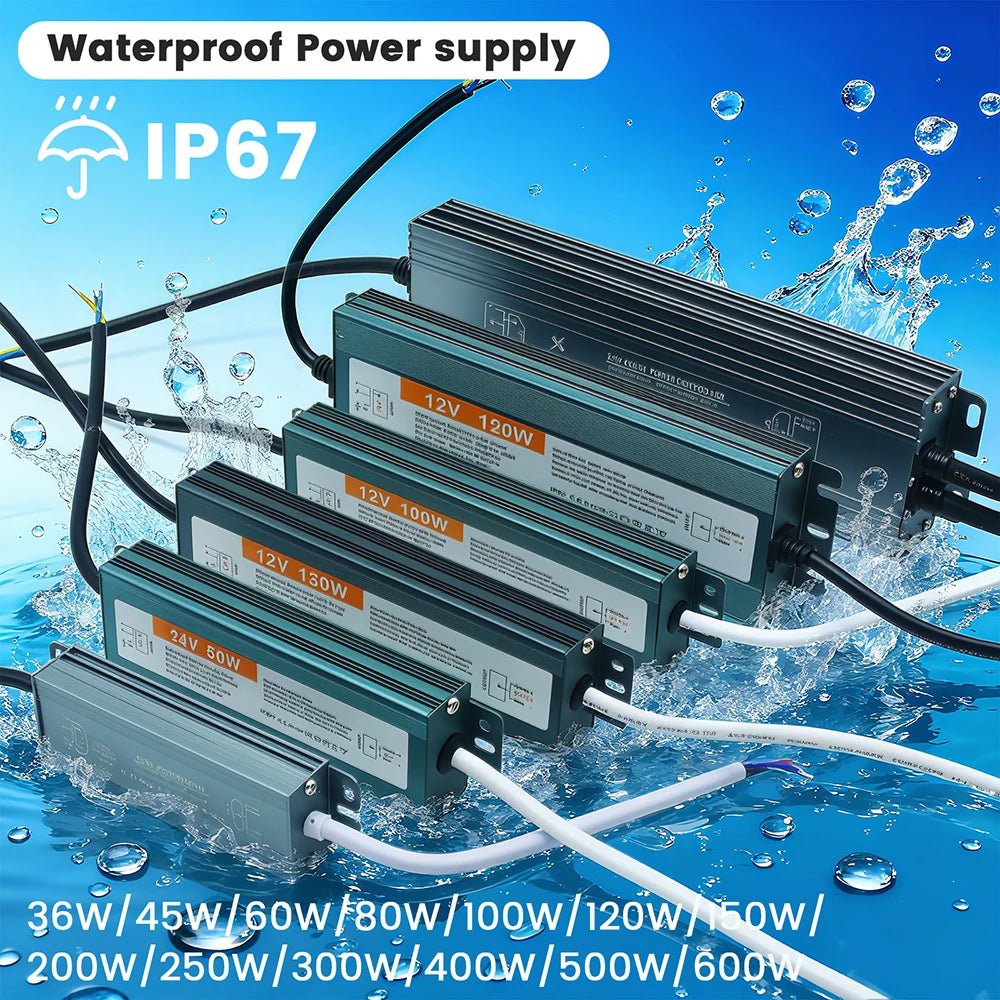

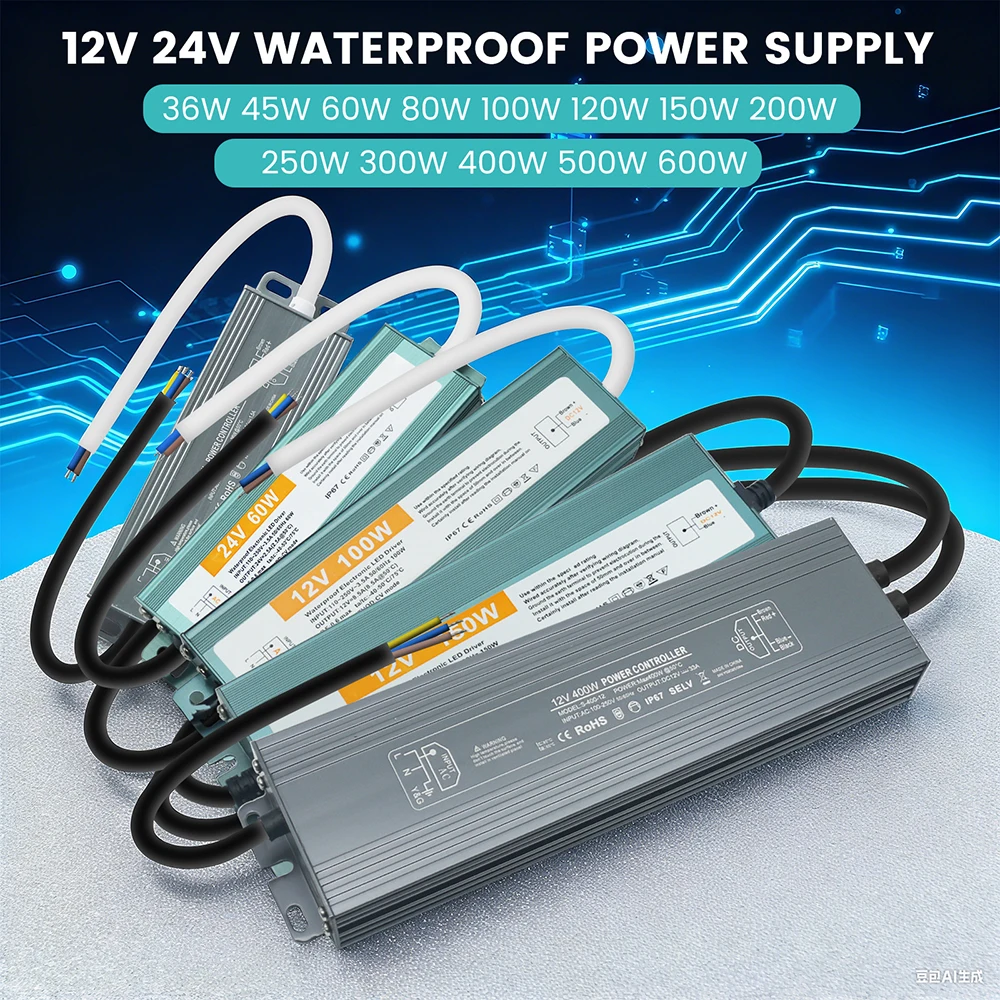

Detailed Model Specifications:

*36W Model: Output Current 3A (12V) / 1.5A (24V) | Dimensions: 100*35*20mm | Single Output Port

*45W Model: Output Current 3.75A (12V) / 1.8A (24V) | Dimensions: 100*35*20mm | Single Output Port

*60W Model: Output Current 5A (12V) / 2.5A (24V) | Dimensions: 132*43*22mm | Single Output Port

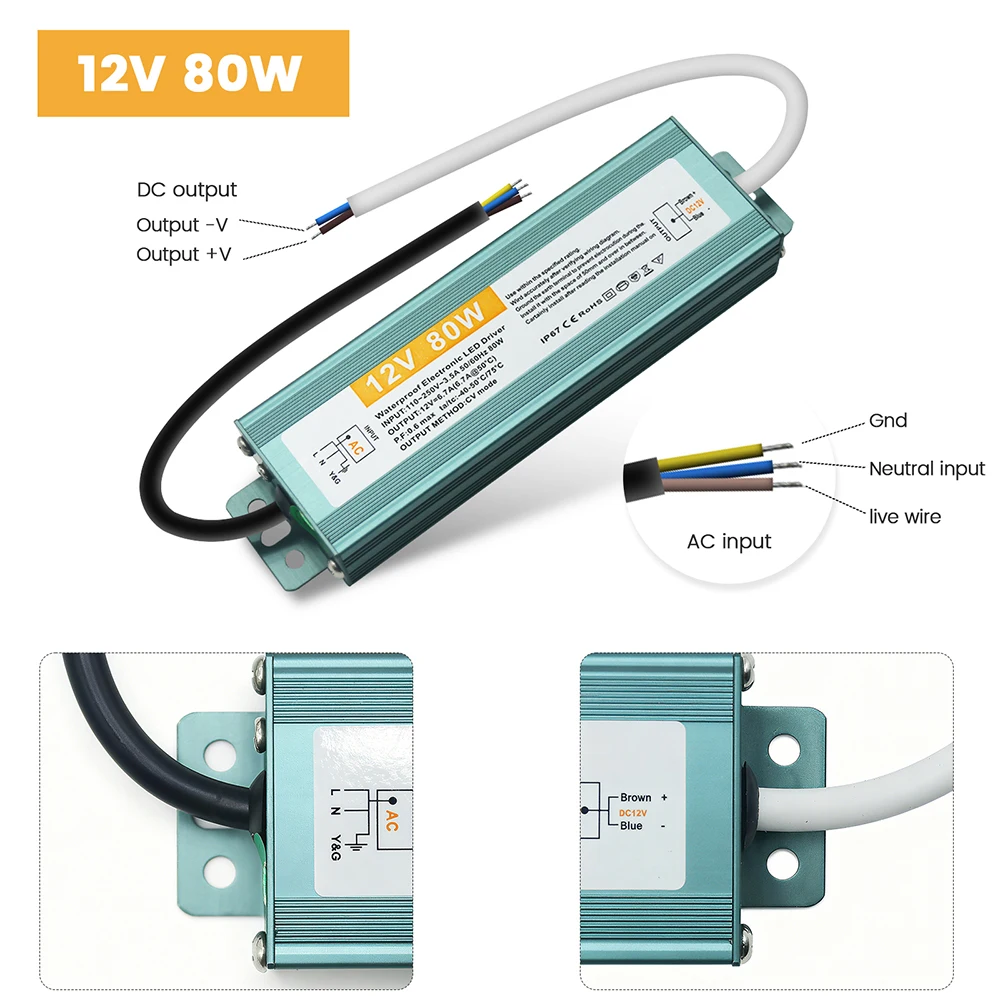

*80W Model: Output Current 6.7A (12V) / 3.4A (24V) | Dimensions: 132*43*22mm | Single Output Port

*100W Model: Output Current 8.5A (12V) / 4.2A (24V) | Dimensions: 164*43*22mm | Single Output Port

*120W Model: Output Current 10A (12V) / 5A (24V) | Dimensions: 164*43*22mm | Single Output Port

*150W Model: Output Current 12.5A (12V) / 6.3A (24V) | Dimensions: 194*64*25mm | Single Output Port

*200W Model: Output Current 16.6A (12V) / 8.3A (24V) | Dimensions: 194*53*20mm | Single Output Port

250W Model: Output Current 20.8A (12V) / 10.4A (24V) | Dimensions: 194*53*20mm | Single Output Port

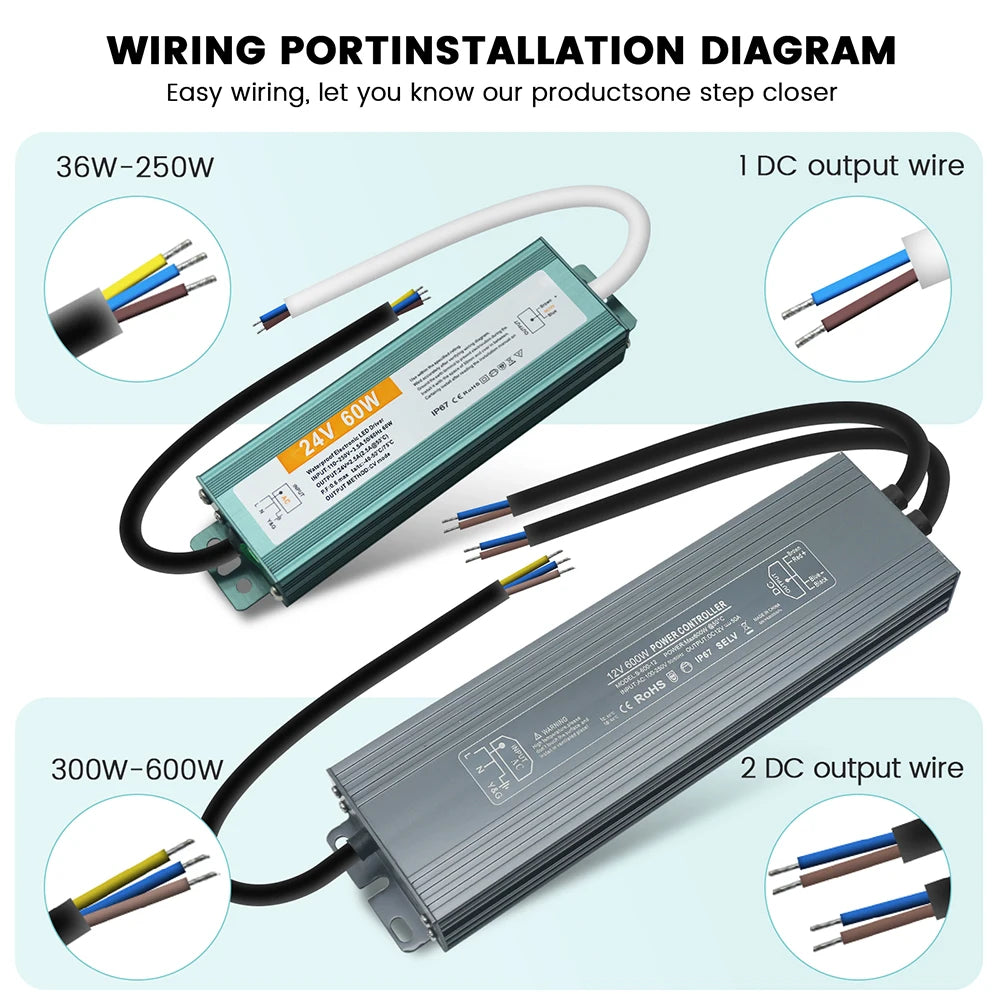

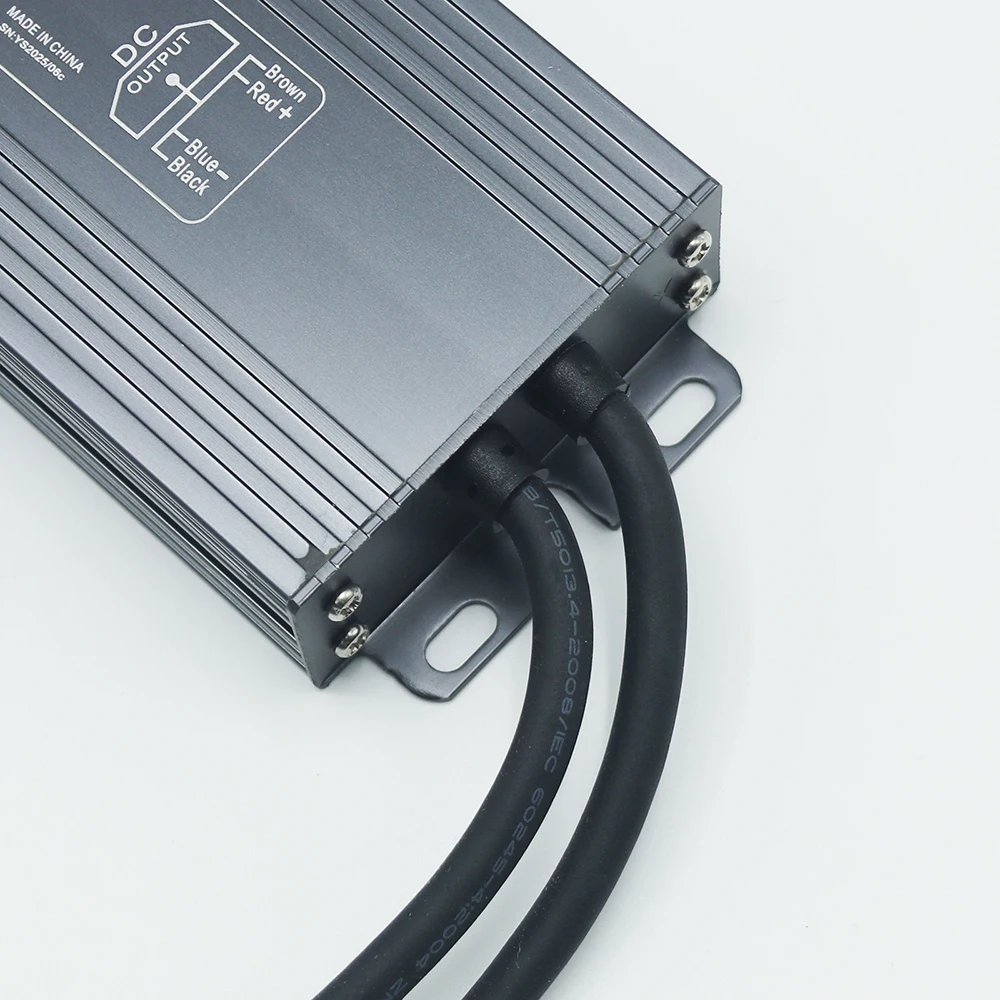

*300W Model: Output Current 25A (12V) / 12.5A (24V) | Dimensions: 232*70*30mm | Dual Output Ports

*400W Model: Output Current 33A (12V) / 16.6A (24V) | Dimensions: 232*70*30mm | Dual Output Ports

*500W Model: Output Current 41A (12V) / 20.8A (24V) | Dimensions: 232*70*30mm | Dual Output Ports

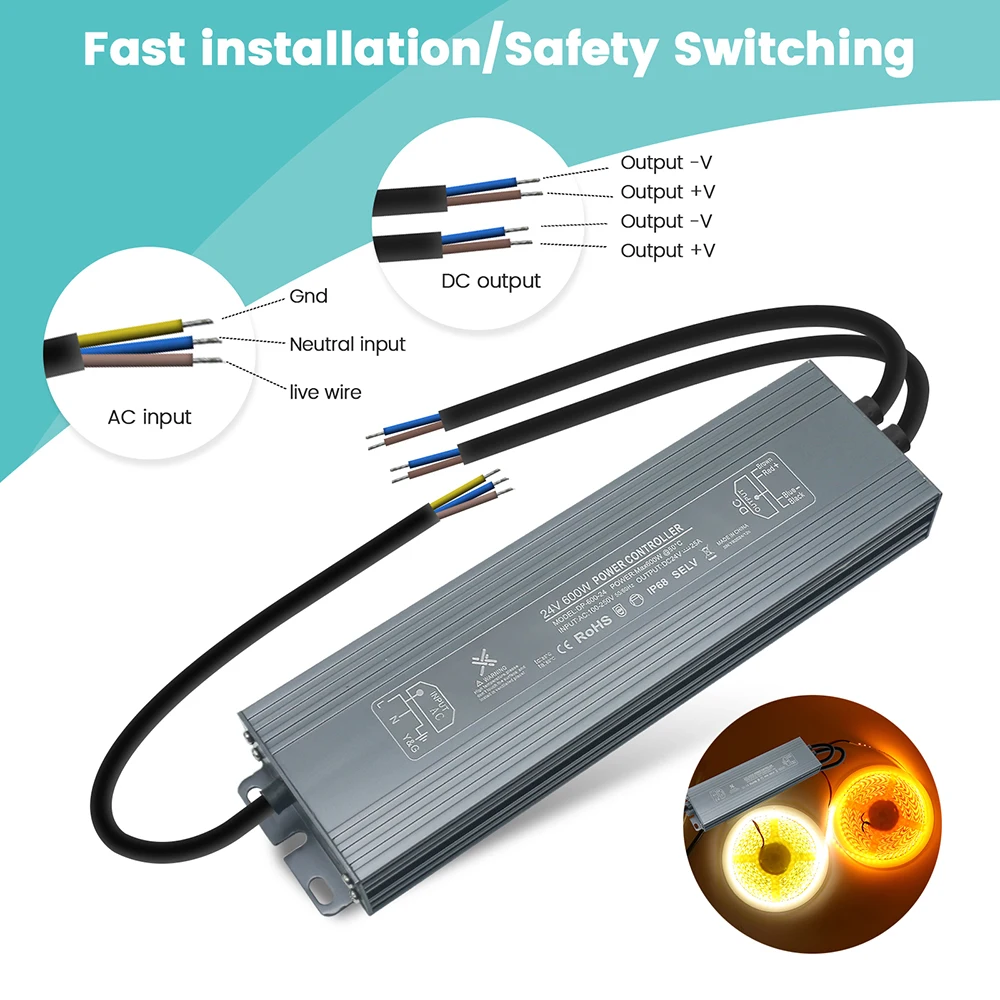

*600W Model: Output Current 50A (12V) / 25A (24V) | Dimensions: 232*70*30mm | Dual Output Ports

Features:

*Plug & Play Worldwide: Features a universal AC 110-250V input. It works seamlessly with any standard power outlet across North America, Europe, and Asia, eliminating the need for an external voltage converter.

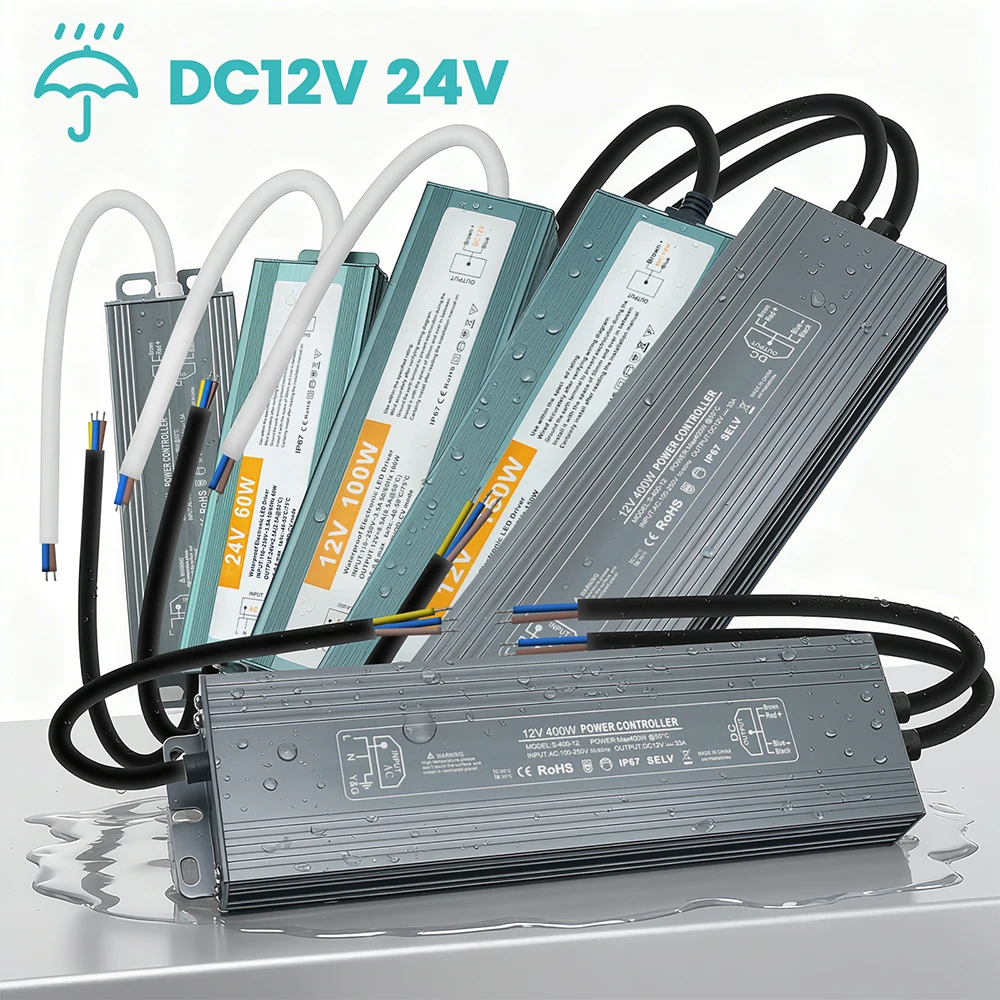

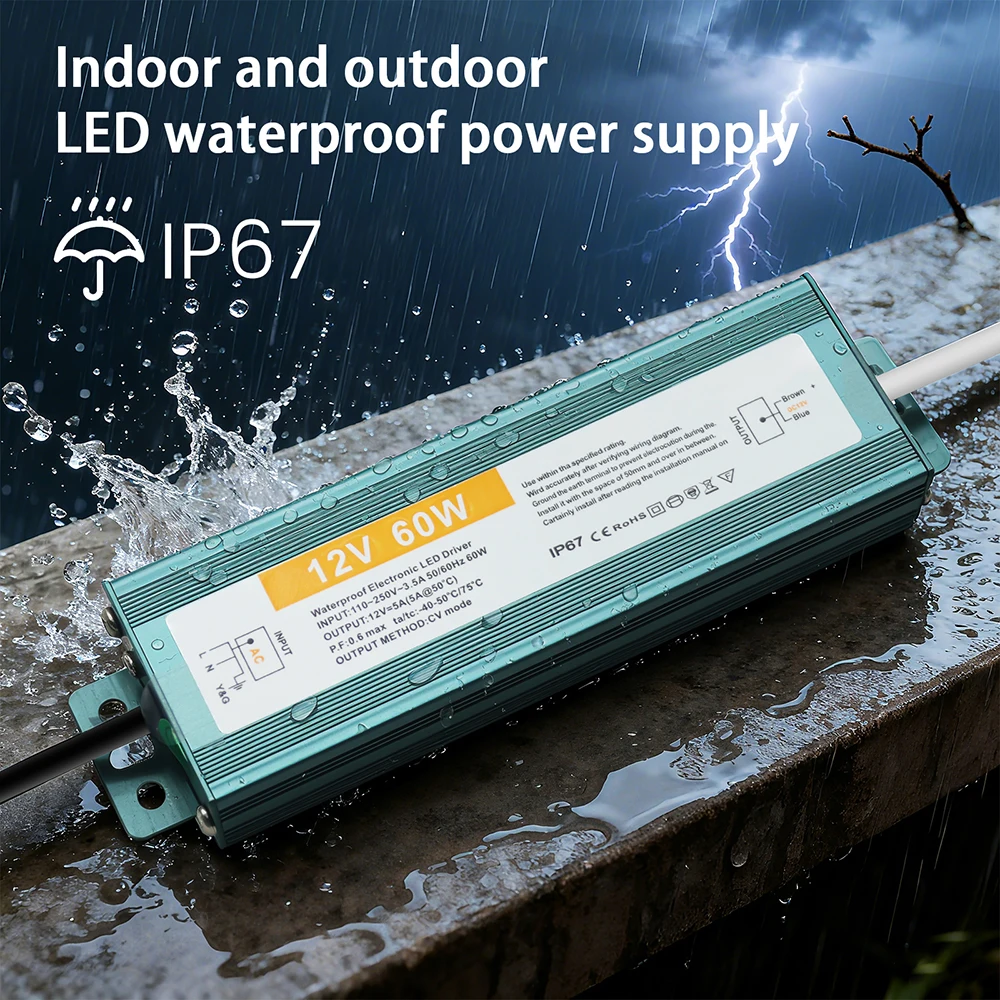

*TRUE IP67 WATERPROOF vs. Basic Dustproof: Unlike standard honeycomb-design power supplies that only offer basic dust protection, our unit is IP67 waterproof. It provides complete protection against rain, splashes, and harsh outdoor conditions, ensuring reliability in environments like gardens, pools, and industrial sites.

*Advanced Cooling with Total Dust Defense: The specially designed grooves on both sides significantly increase the散热面积 for enhanced heat dissipation. Crucially, this sealed groove design provides superior cooling while maintaining the IP67 rating, effectively preventing dust ingress, a common failure point in honeycomb-style housings. This leads to lower operating temperatures and a dramatically extended lifespan.

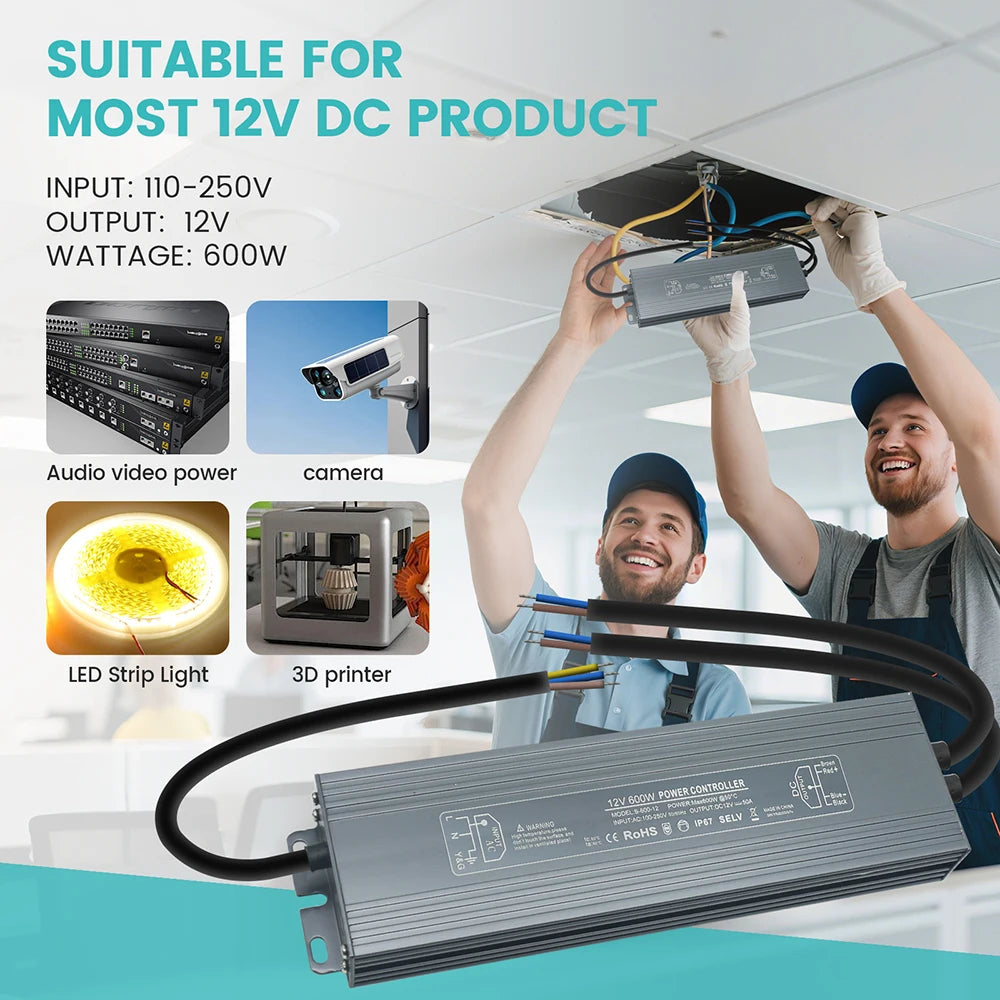

*Stable & Efficient Power Delivery: Engineered to provide exceptionally clean, stable, and reliable DC power, protecting your sensitive connected equipment like LED strips, CCTV cameras, and audio systems from damage caused by power fluctuations.

*Dual Voltage for Ultimate Flexibility: A simple switch selects between 12V and 24V DC output. This versatility makes it compatible with a vast range of devices, reducing the need for multiple power adapters and simplifying your setup.

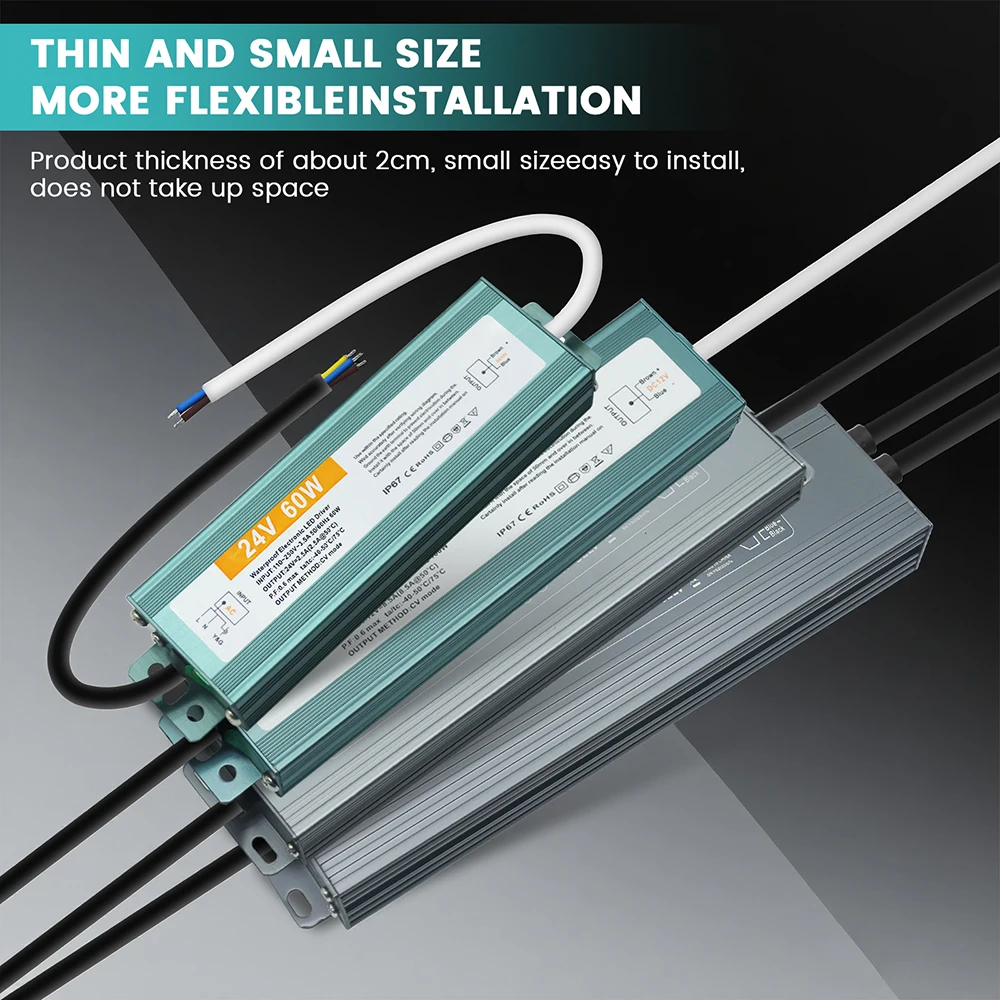

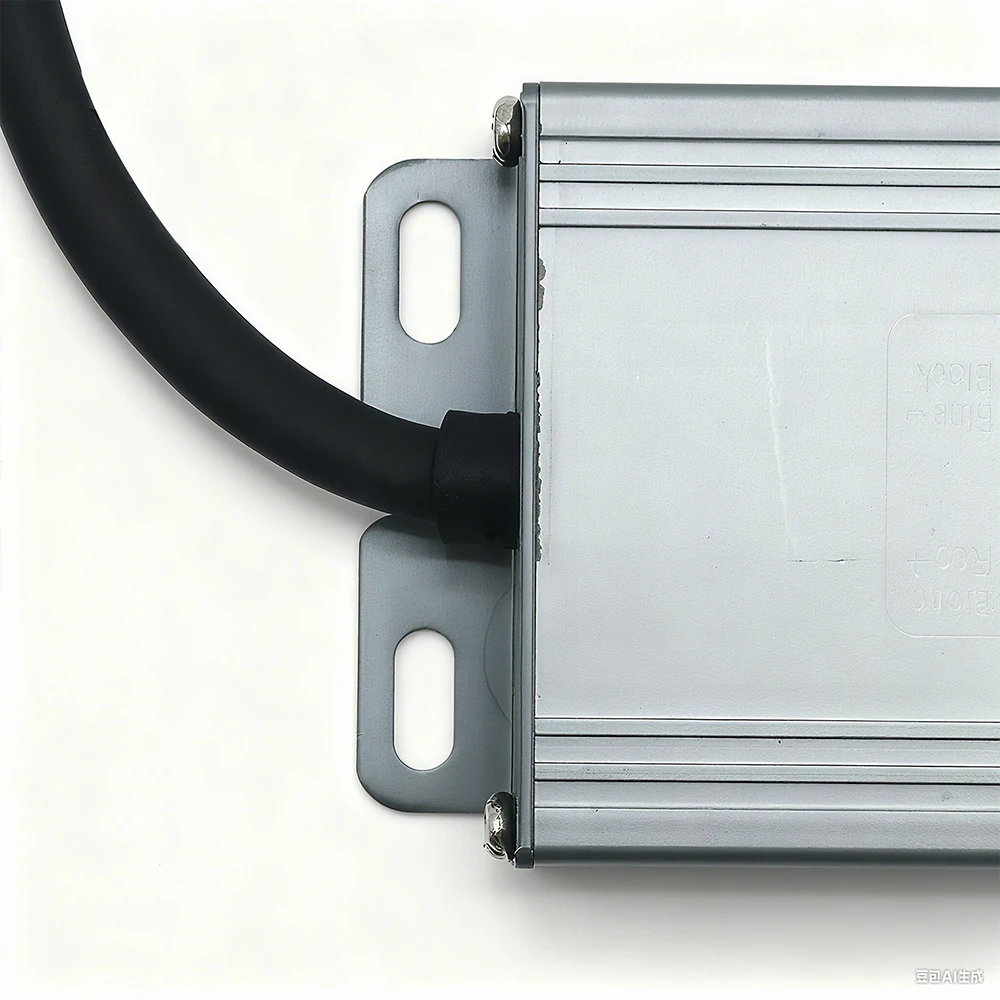

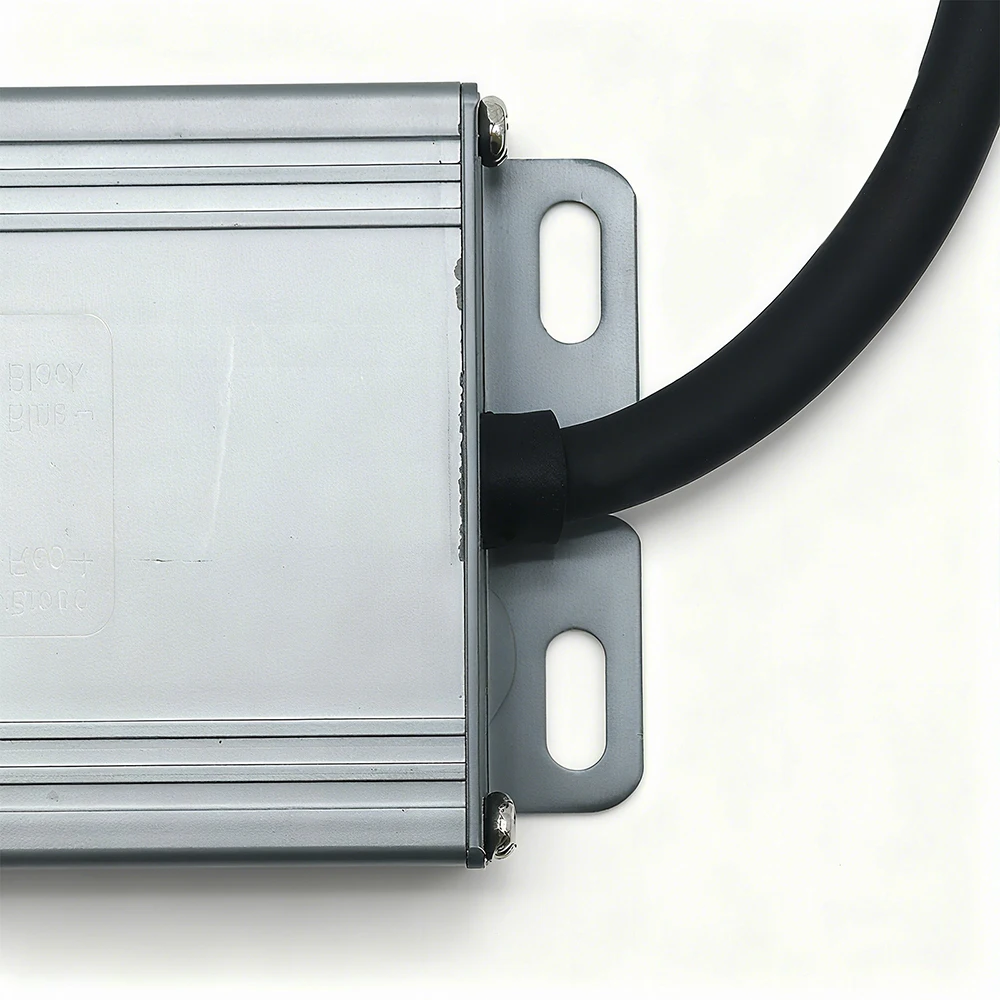

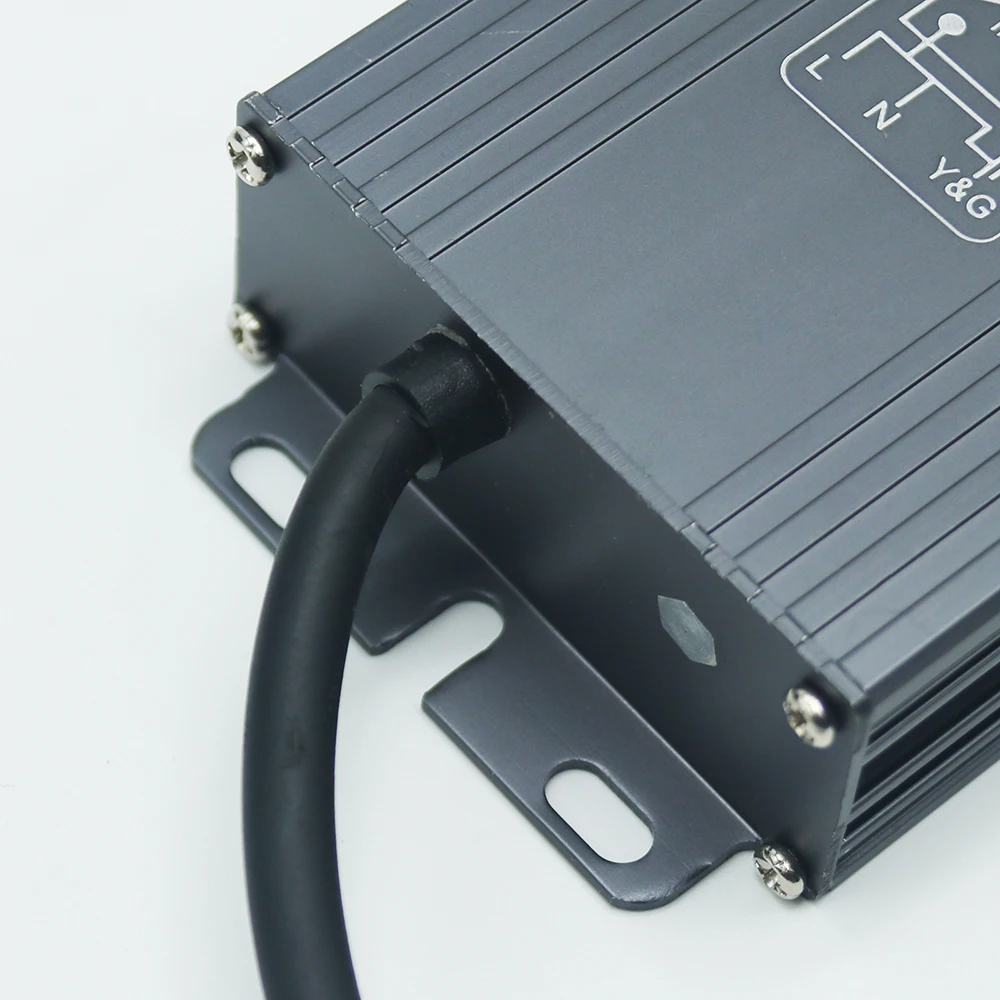

*Easy & Secure Installation: The integrated mounting holes on the back allow for quick, secure, and permanent installation in various positions, reducing stress on cables and ensuring a tidy, professional setup.

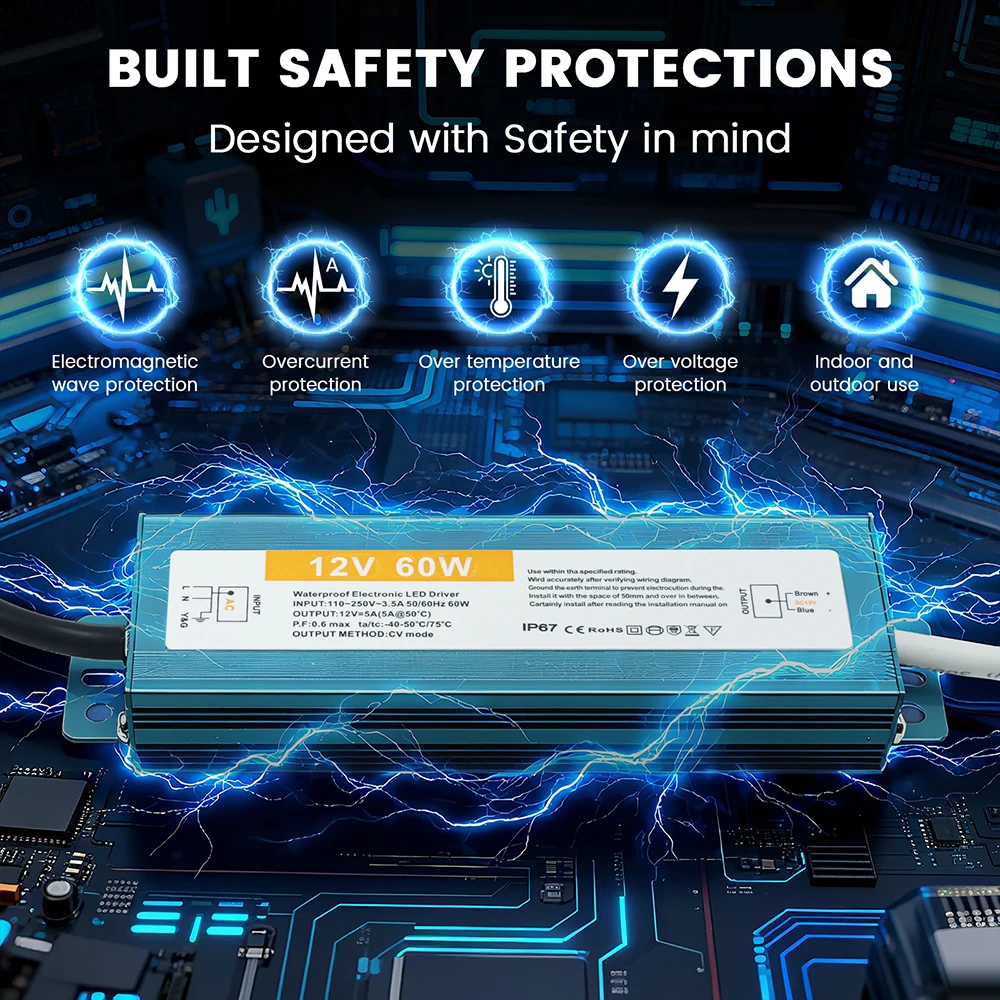

*Built-in Triple Protection: Your investment is safeguarded by automatic Over-Current, Short-Circuit, and Over-Voltage protections, ensuring the safety of both the power supply and your valuable connected devices.

Package Includes:

1 x Wide Voltage IP67 Waterproof Power Supply (Model as selected)
