IN Rail Switching Power Supply Light Transformer AC 110V 220V To DC 5V 12V 24V Power Supply Source Adapter For Led Strip CCTV
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Choice: yes
High-concerned chemical: None
Model Number: DR-15
Origin: Mainland China
Output Current: 0-1A
Output Power: 1 - 50W
Output Type: SINGLE
Type: Power Supply
is_customized: Yes
Switching power supply parameters

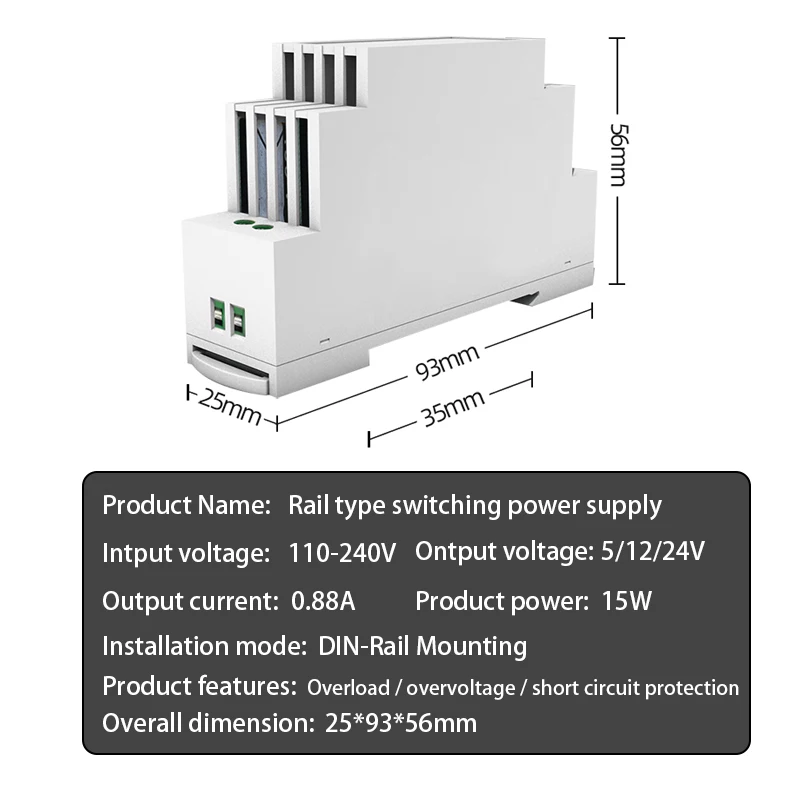

1.dimension:25*56*93mm(W*H*D) 2. AC input voltage range:90~264VAC,127~373VDC 3.Input current:1.0A/110VAC,0.55A/220VAC 4.AC inrush current:Cold start current 20A/115VAC,40A/230VAC 5.DC adjustable range:±10% rated output voltage 6.Over load protection:105~150%cut off the output,auto-recovery 7.Over voltage protection:115~135% cut off the output,auto-recovery 8.Withstand voltage:I/P-O/P:3KvAC 1minute I/P-FG:1.5KvAC 1minute 9.Weight:0.1kg
Switching power supply 15W Din rail mounting single output 12V1.25A 5V3A DR-15-24V 1AAC to DC transformer
