220V 380V VFD Variable Frequency Drive Inverter 0.75/1.5/2.2/3.7/4/5.5KW Vector Control Variator Speed Adjuster Controller

220V 380V VFD Variable Frequency Drive Inverter 0.75/1.5/2.2/3.7/4/5.5KW Vector Control Variator Speed Adjuster Controller

€93,61 €108,01
Color

SPECIFICATIONS

Brand Name: LANDRIVE

Certification: CE

Choice: yes

High-concerned chemical: None

Model Number: CW100

Origin: Mainland China

Output Current: 2.1-13A

Output Frequency: 0-500Hz

Output Power: 0. 75KW-5.5KW

Output Type: triple

Type: AC/AC frequency inverter

Weight: 1-1.5KGS


• High Voltage Range :This VFD variable frequency drive inverter operates at a range of 220V or 380V, making it suitable for three phase asynchronous motors.


• Versatile Speed Adjustment :With an output type of triple, this inverter offers precise speed adjustment controls.


• Vector Control Functionality :Equipped with vector control functionality, this inverter ensures efficient and stable operation, enhancing the overall performance of your motors.


• Output Type :The triple output type of this inverter provides flexibility and versatility, catering to different power needs of motors.


• Easy Speed Adjustment :The speed adjuster controller allows for easy and precise speed modification, ensuring optimal operation of your motors.




"CONTROL YOUR MOTOR SPEED"


Our frequency inverters are used to control three phase asynchronous motors speed.

And they are appropriate for kinds of motors, like fans, conveyors, engraving machines.

The frequency inverters (VFD) are not for single phase 220V motor with capacitor. It is for

three phase 380v motors (or 220v motors by 220v VFD), which are asynchronous.

The frequency inverters (VFD) can not be used as power supply for common electrical

equipments.

Product Introduction


Function advantages:


1. Forward, reverse, start and stop controlled by panel or external terminals.

2. Adjust speed by panel potentiometer or external potentiometer.

3. Built-in brake unit (for connecting brake resistance).
4. PID function (Constant pressure water supply).
5. Multi-stage run.
6. RS485 communication protocol by PLC.
7. Vector control, low frequency high torque.

8. Optional external control panel(not included in the package).

9. Overload protection.


Sizes:

For 0.75kw-2.2kw:

For 3.7KW/5.5KW:
Specifications:

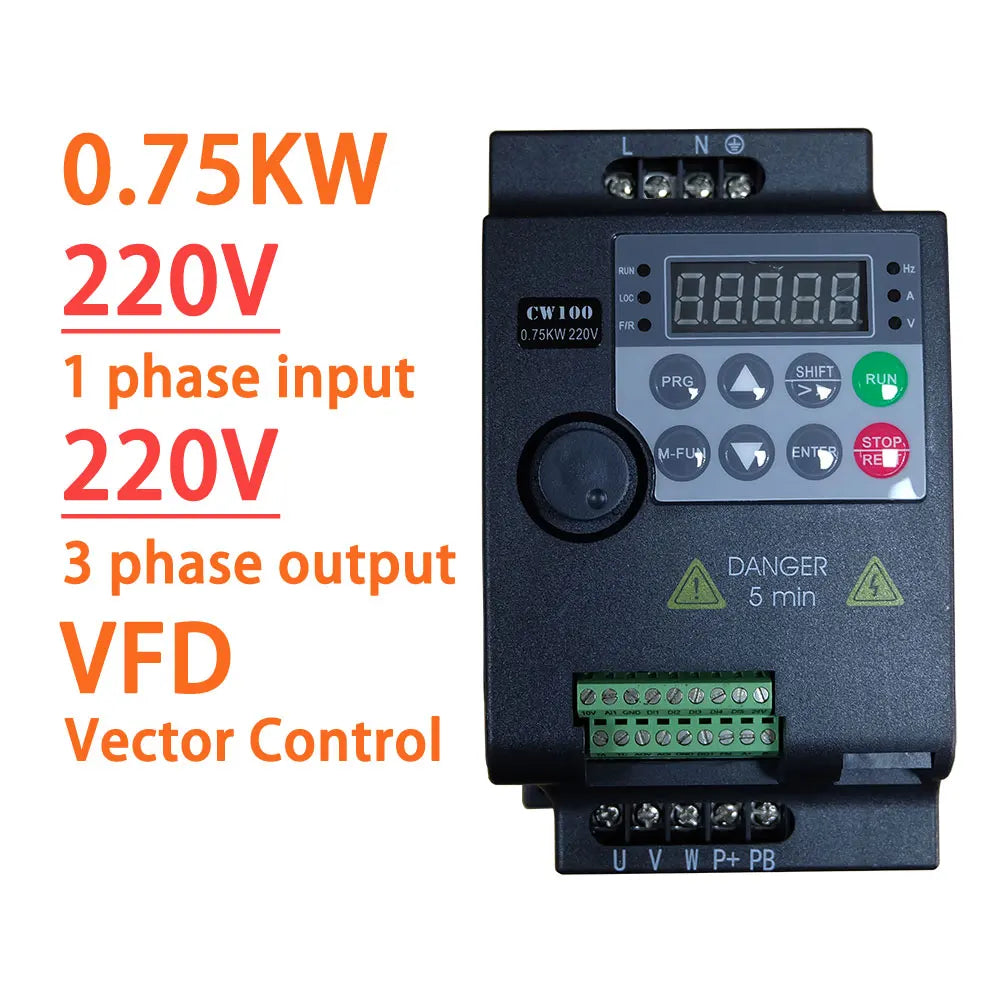

Rated power: 0.75kw/1.5kw/2.2kw (for 220V-220V type)
Rated output current: 4A(for 0.75kw)/7A(for 1.5kw)/9.6A(for 2.2kw)
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 130x73mm
External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg
Rated power: 3.7kw(for 220V-220V type)
Rated output current: 16A
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.4kg
Rated power: 0.75kw/1.5kw/2.2kw (for 380V-380V type)
Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)
Input voltage: 3 phase 380v
Output voltage: 3 phase 380v
Installation dimension: 130x73mm
External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg

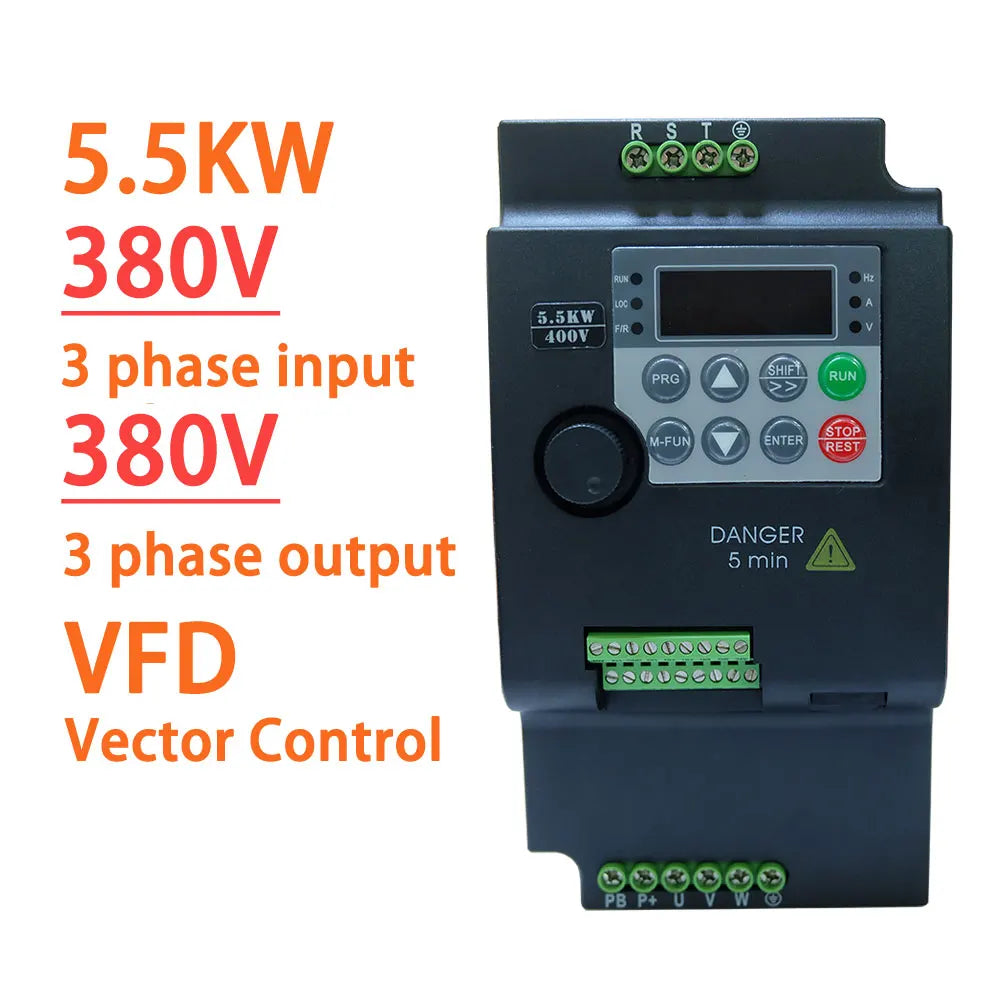

Rated power: 3.7kw/5.5kw (for 380V-380V type)
Rated output current: 9A(for 3.7kw)/13A(for 5.5kw)
Input voltage: 3 phase 380v
Output voltage: 3 phase 380v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.4kgs
Rated power: 0.75kw/1.5kw/2.2kw (for 220V-380V type)
Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)
Input voltage: 1 phase 220v
Output voltage: 3 phase 380v
Installation dimension: 130x73mm
External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg
Rated power: 3.7kw/5.5kw (for 220V-380V type)
Rated output current: 9A(for 3.7kw)/13A(for 5.5kw)
Input voltage: 1 phase 220v
Output voltage: 3 phase 380v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.4kgs


Optional external control panel(not included in the package):

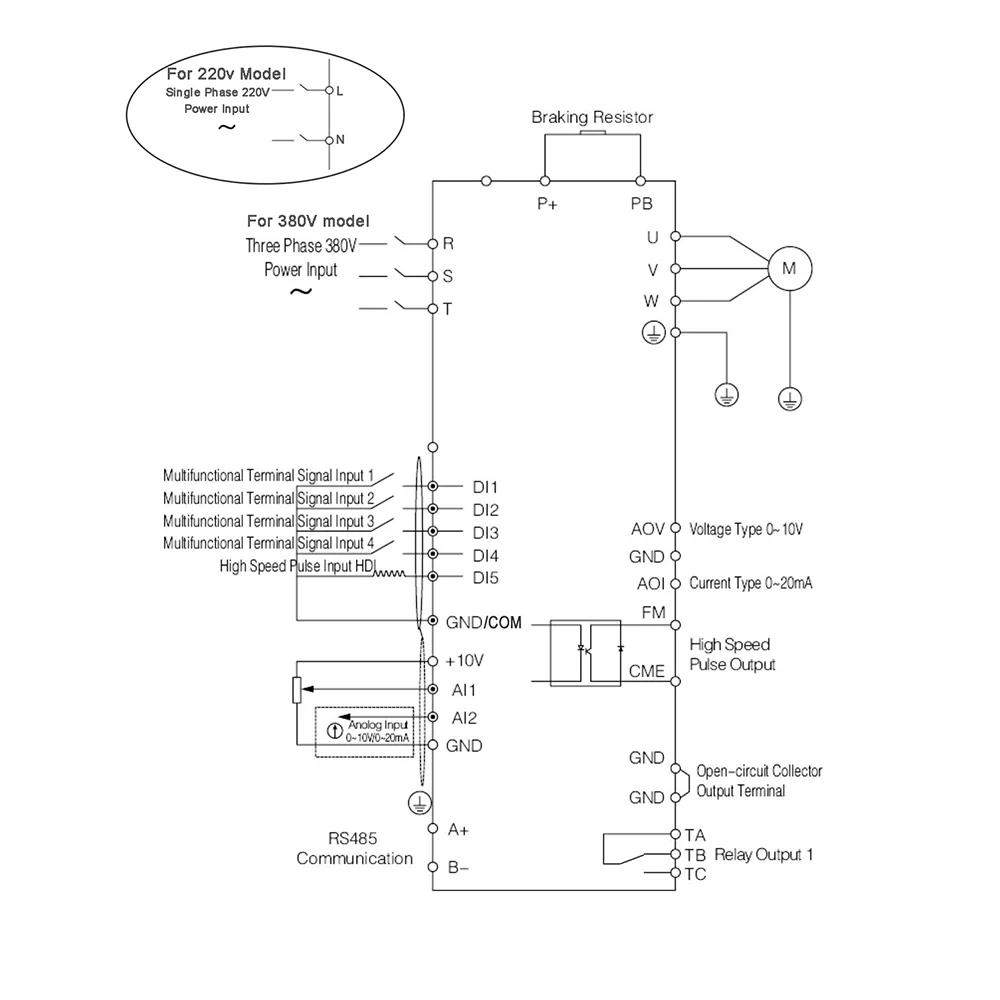

Installation:


Note：before wiring, please read【the safety precautions】carefully. Pay attention to life safety and prevent the equipment from danger.

(for 220V type)


(for 380V type)


Certificate:

Delivery:
Please write your correct full name, contact information for successful delivery.
We will deliver within 5 working days after receiving your payment.
Please note different delivery time upon different logistics companies.


Tariff:

You should know the VAT or customs tariff policy of your own country before your purchase. If there is VAT or tariff, you need to pay them by yourself.


Return:

We will be responsible, if the products have quality problem.

Please check the product within 7 days since you receive it. And if the product has quality problem, you can return the product to us and we will return all the payment back to you. Please contact us about quality problem within 7 days after receiving goods, otherwise we can not accept the return.


Feedback:

Your positive (5 stars) feedback is highly appreciated. We guarantee the product quality and service. If you have any questions, please feel free to contact us.
