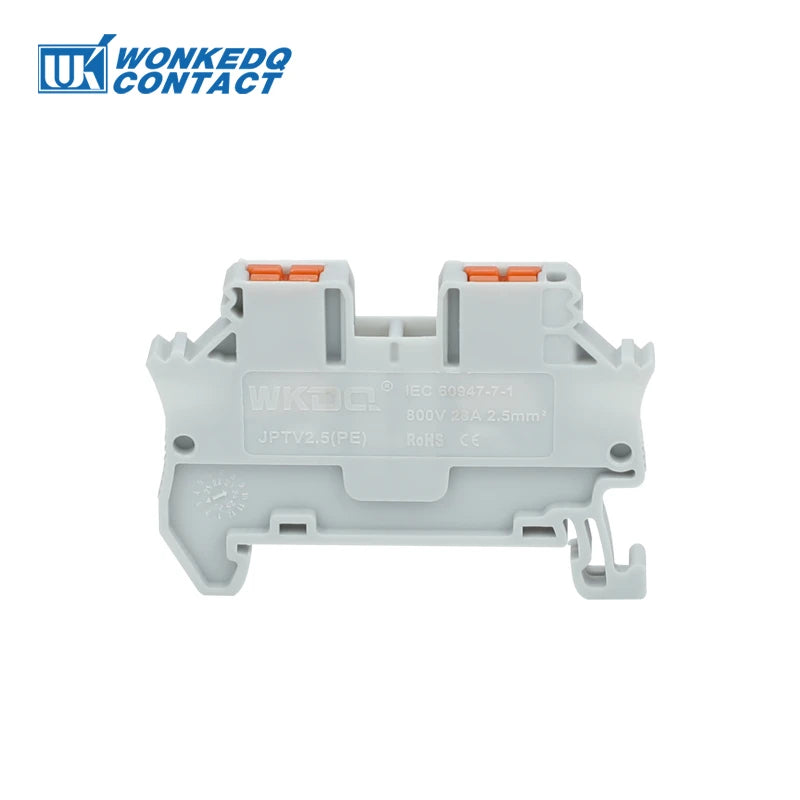

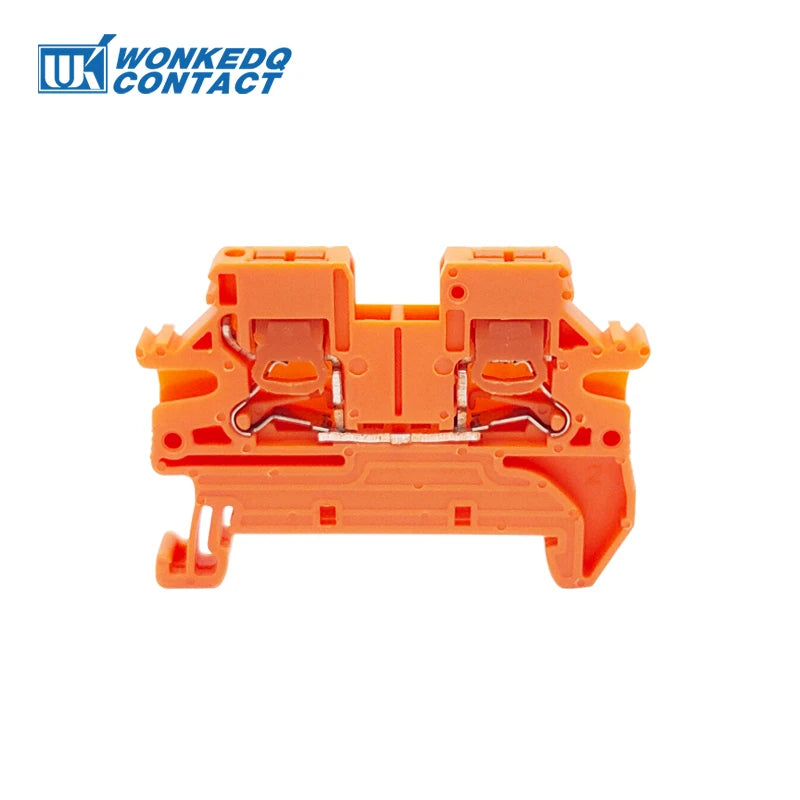

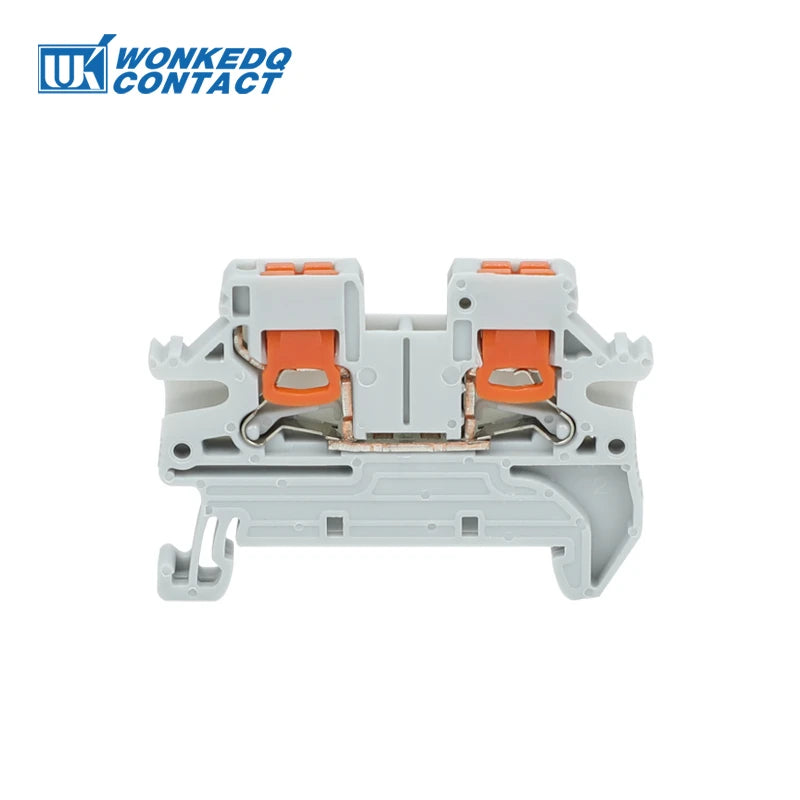

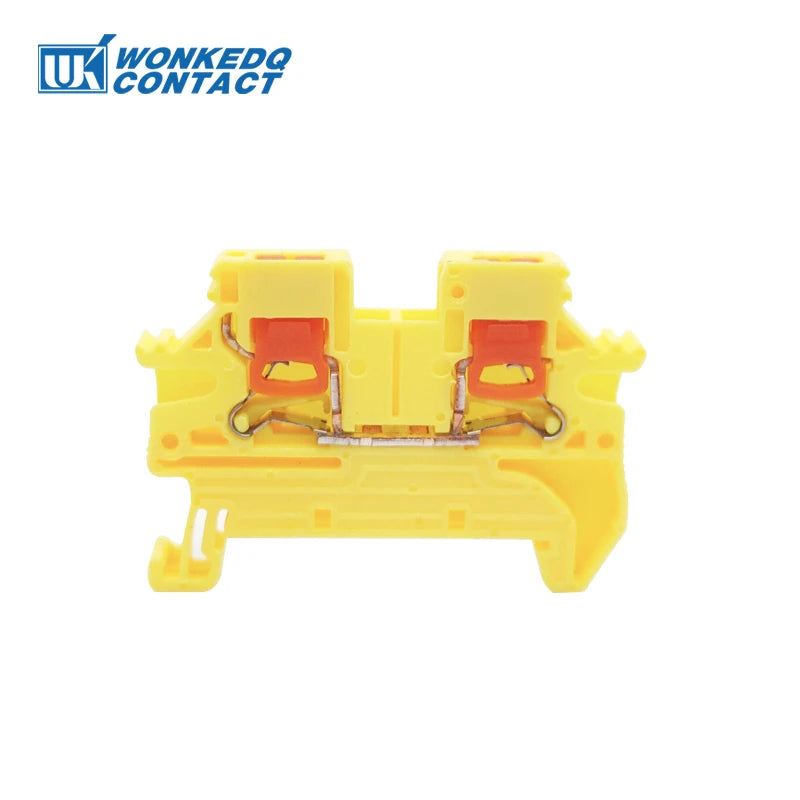

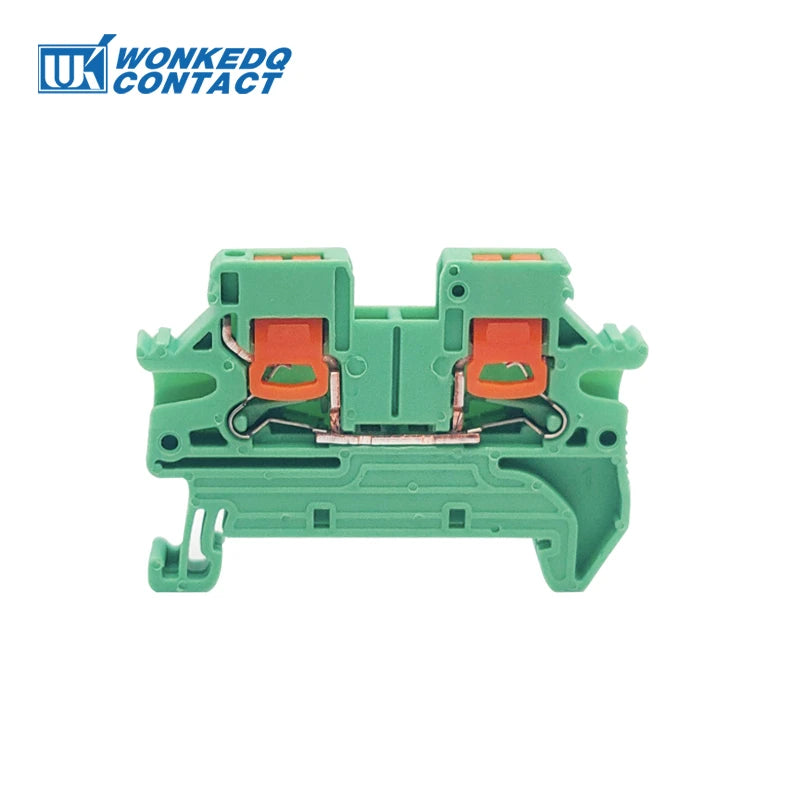

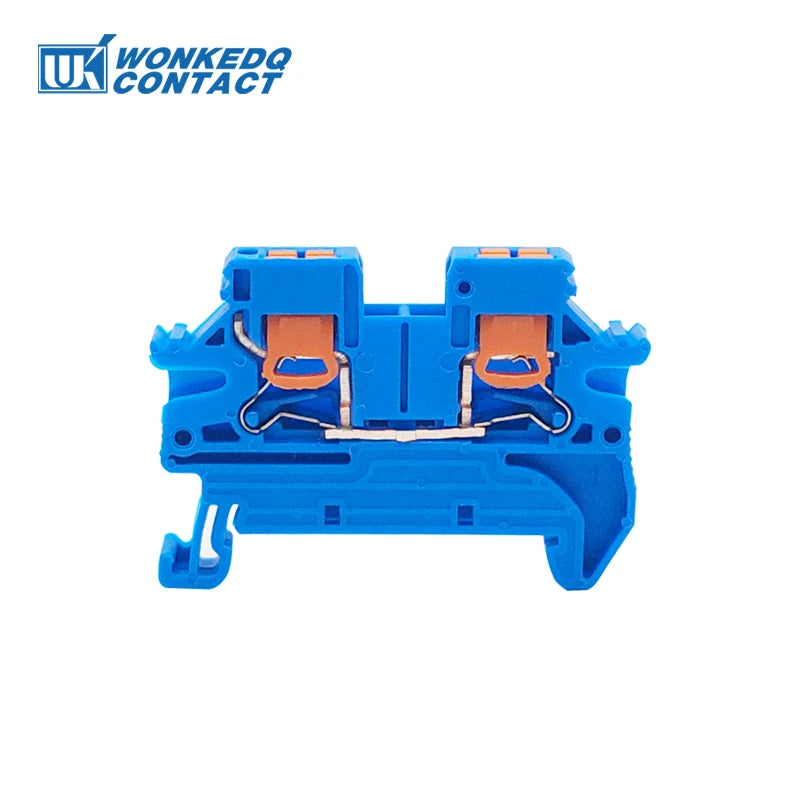

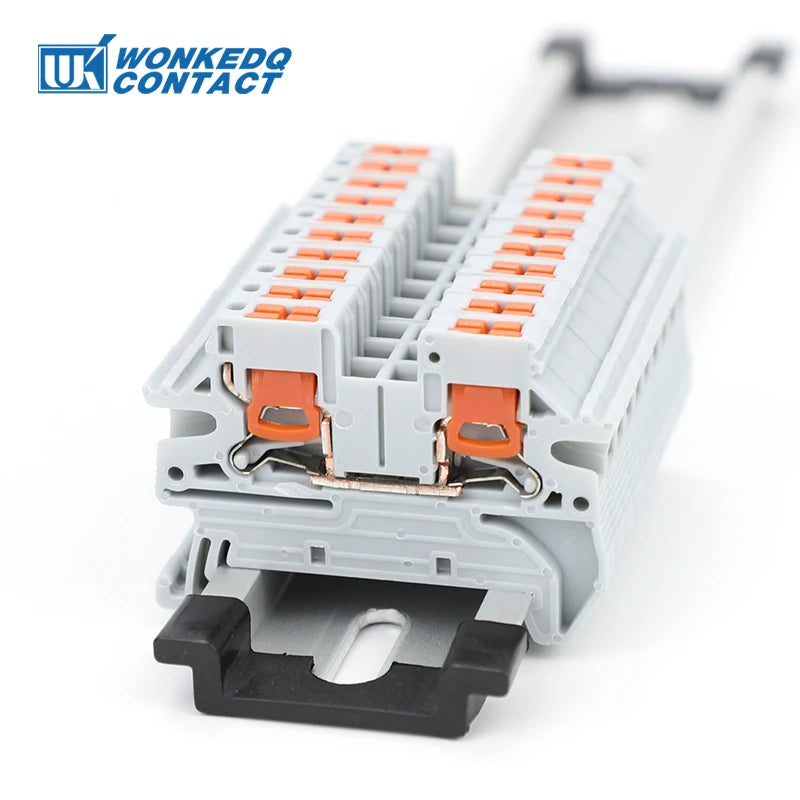

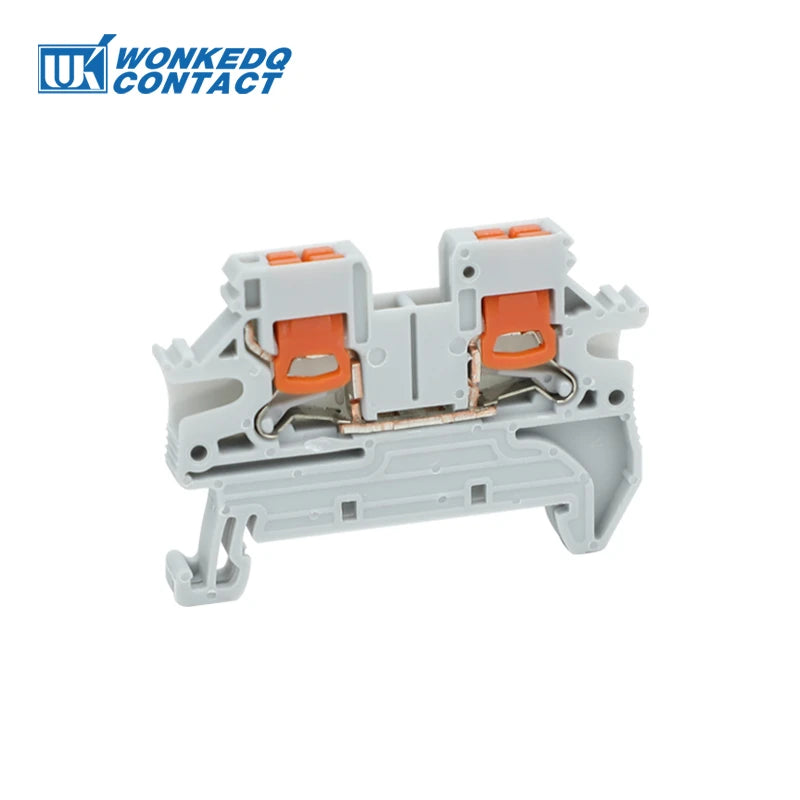

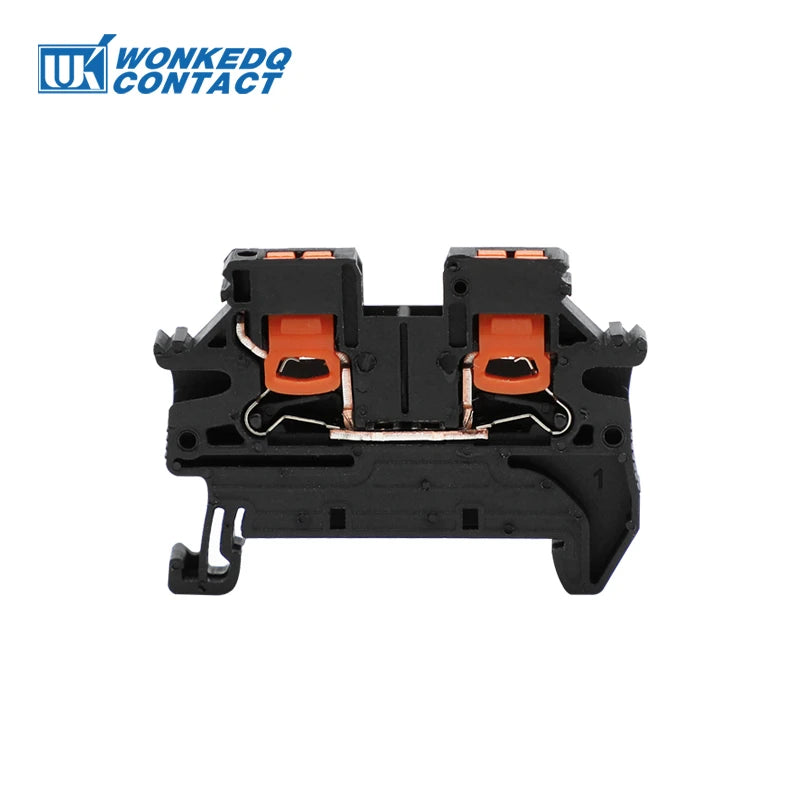

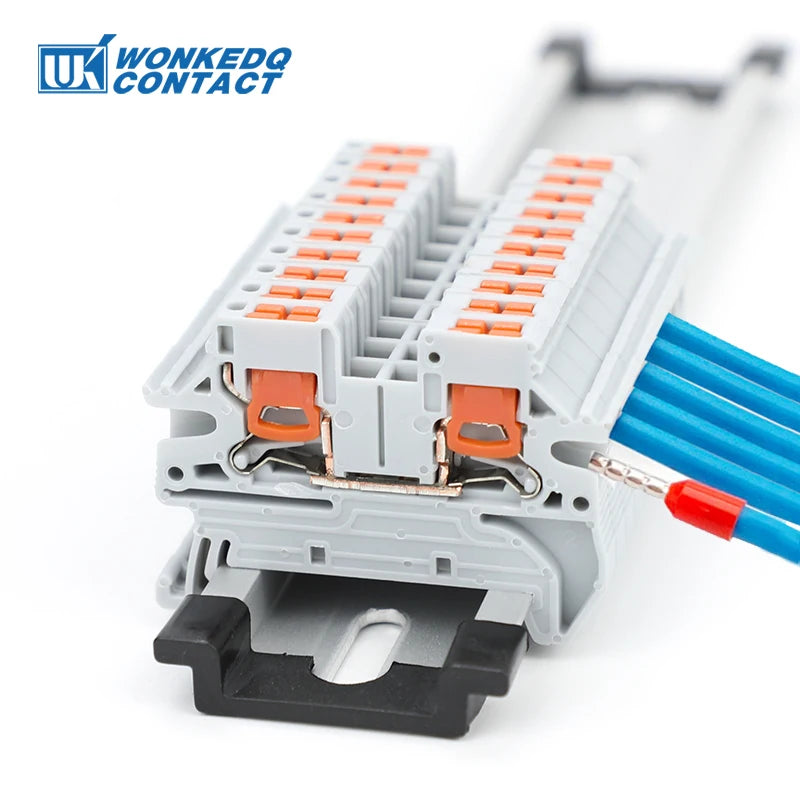

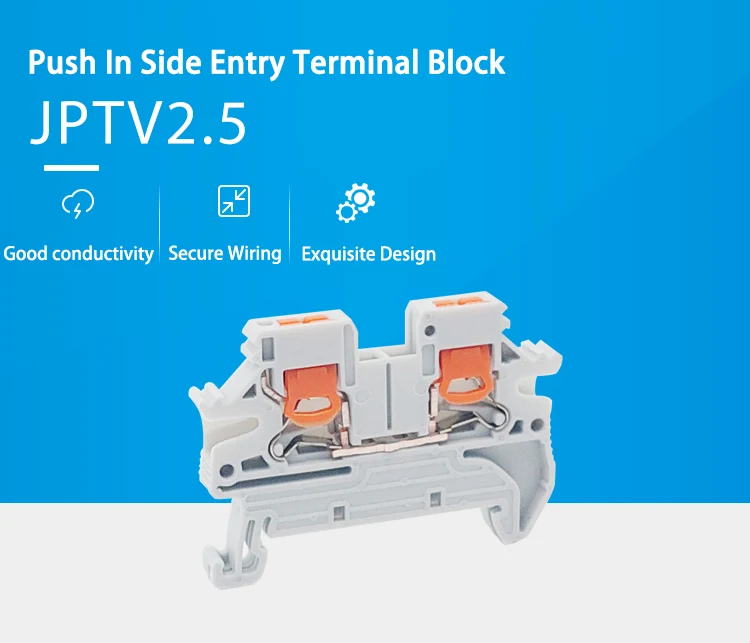

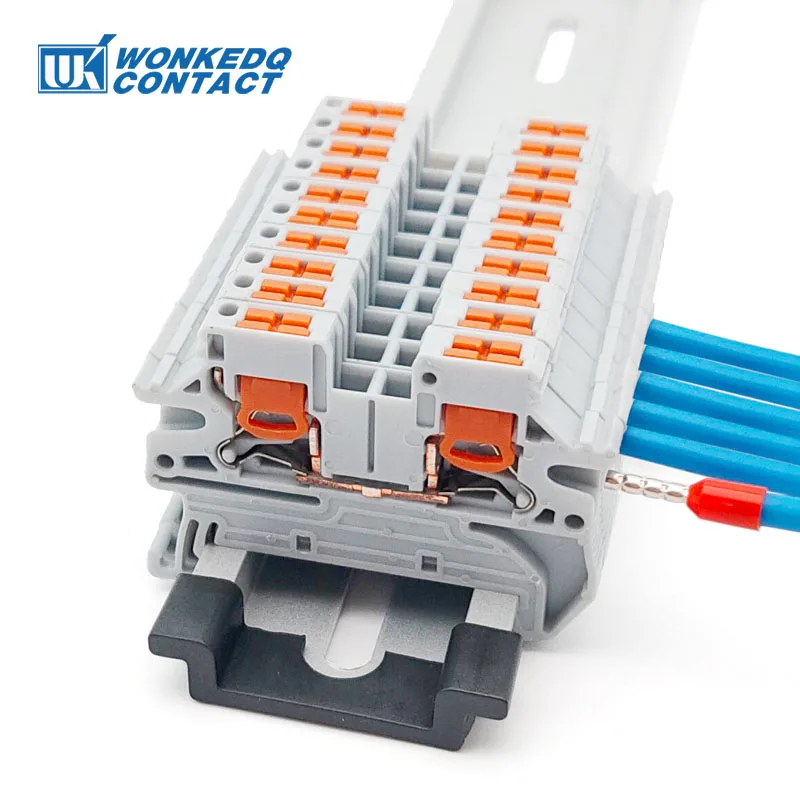

10Pcs PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 12 AWG Cable Wiring Electrical Wire Connector PTV2.5
€7,01
Taxes included.
SPECIFICATIONS
Brand Name: WONKEDQ
Certification: CE,RoHS,CE/RoHS/CQC/ISO 9001
Color: Grey, Blue, other color can be customized
Conductor Size: 26-12 AWG, 26-12 AWG
Connection method: Push-in connection
Cross section, solid/soft Cable: 0.14-4mm²/0.14-2.5mm²
Hign-concerned Chemical: None
Material: Flame resistant Nylon PA66, Tin plated brass conductor
Model Number: PTV 2.5,PTV 2.5
Mounting Type: DIN Rail NS 35
Origin: Mainland China
Rated Voltage/Current: 800V/24A
Standard: IEC 60947-7-1
Type: Push-in Terminal,Spring Push-in
DESCRIPTION

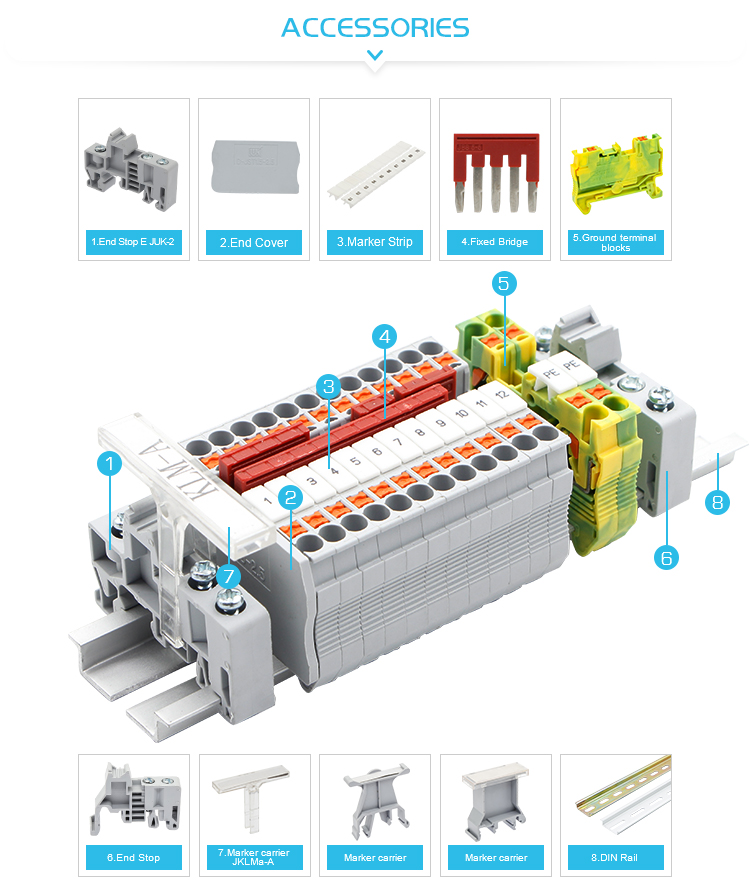

ACCESSORIES ( Click the pictures to the links)
|
|
|
|

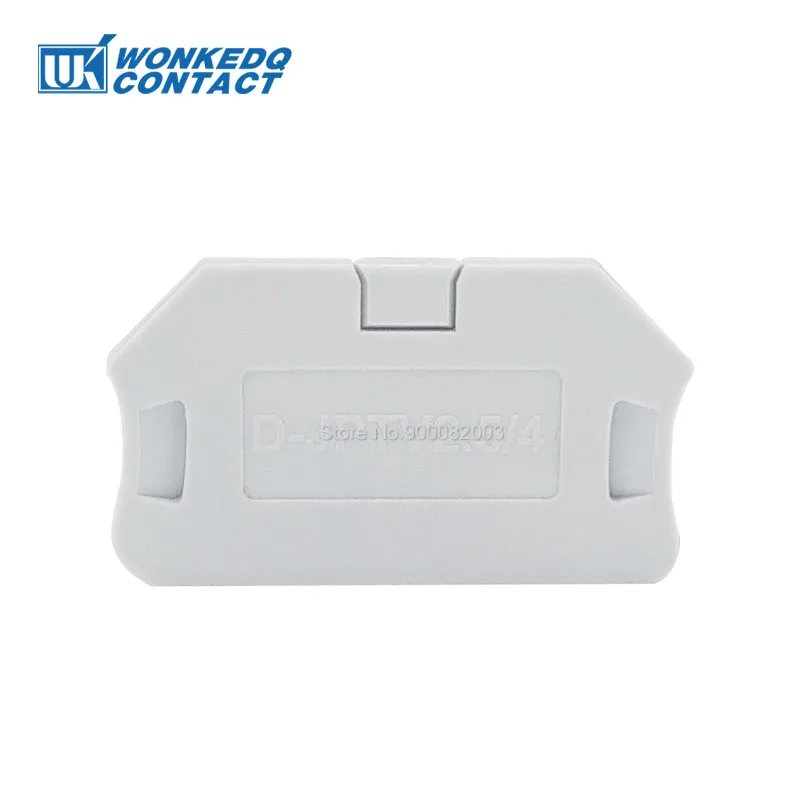

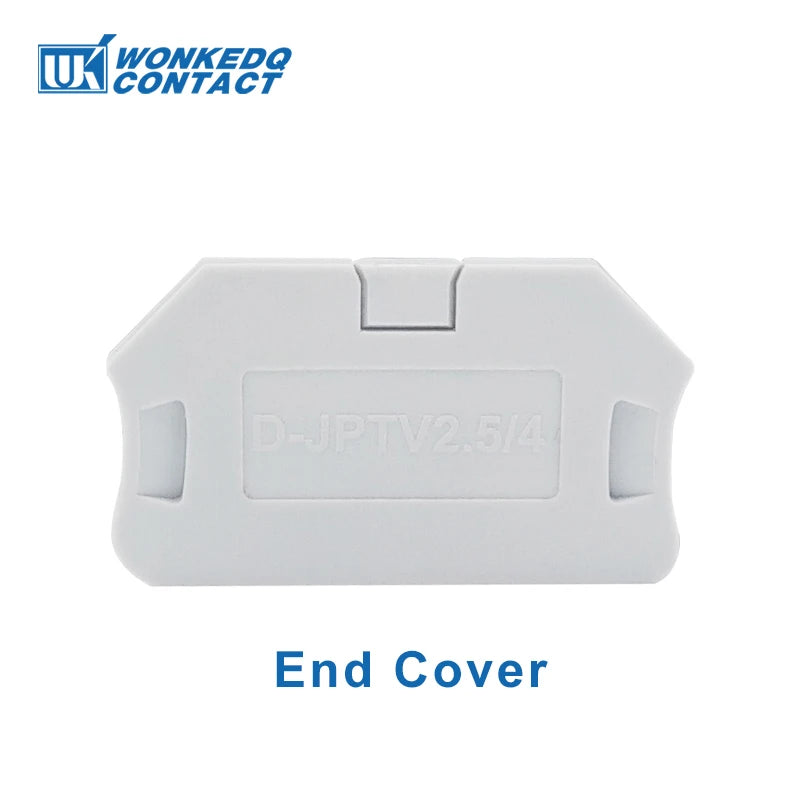

END COVER |

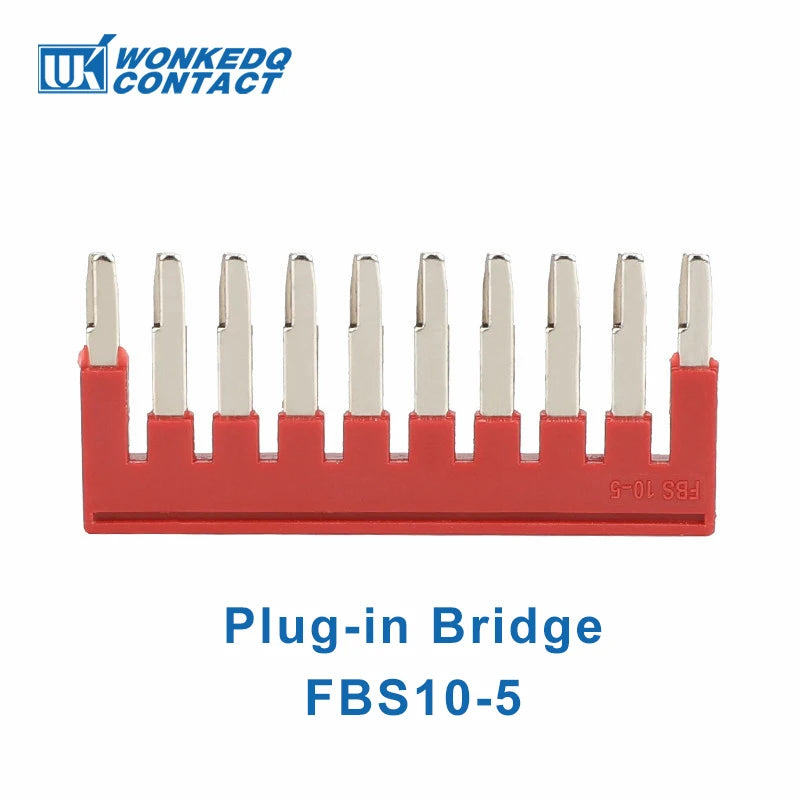

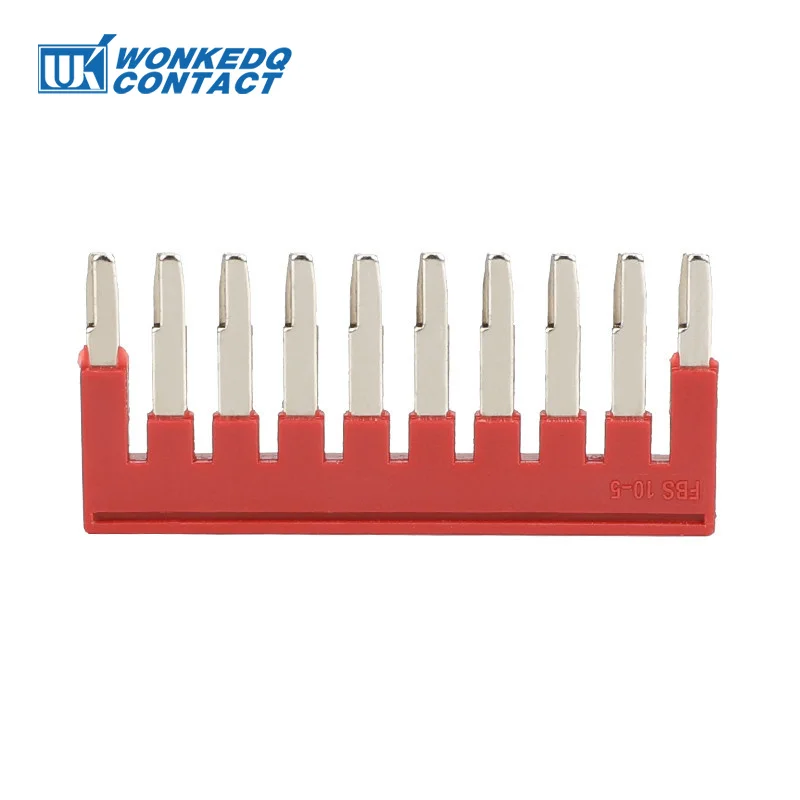

INSERTION BRIDGE |

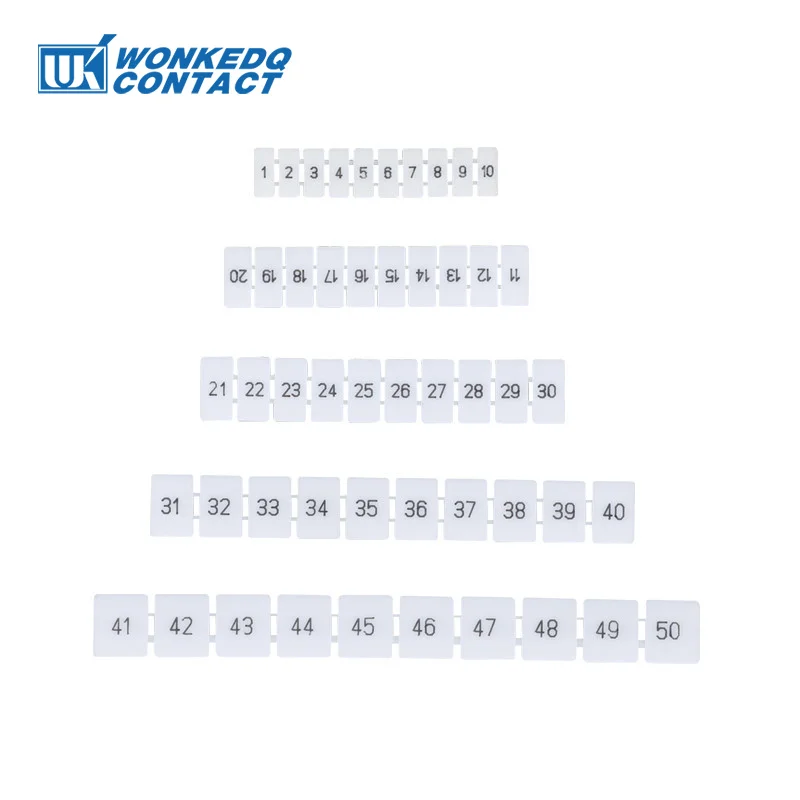

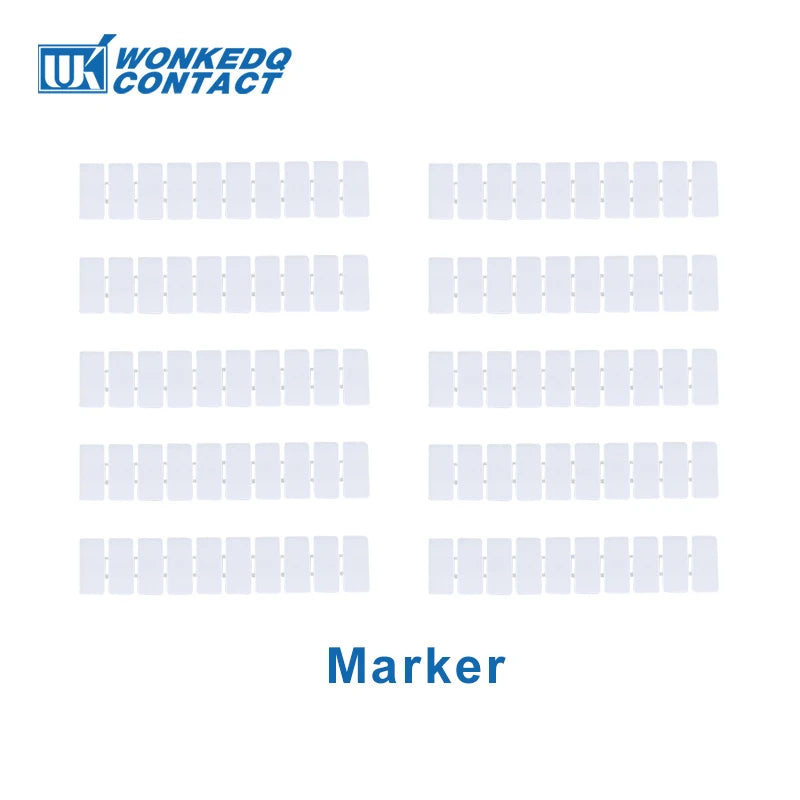

MARKER STRIPS ZB 5 |

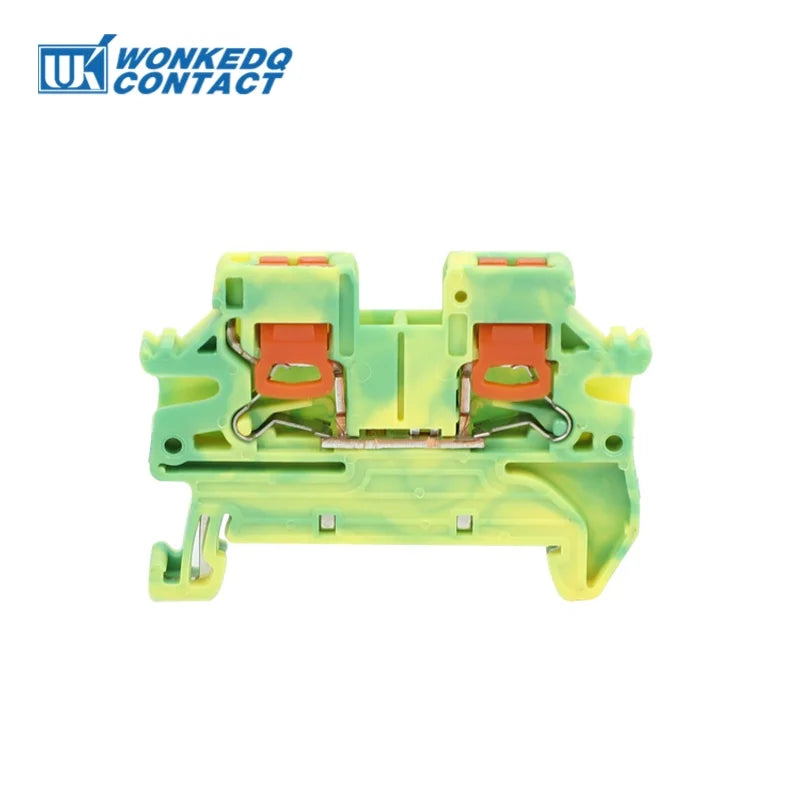

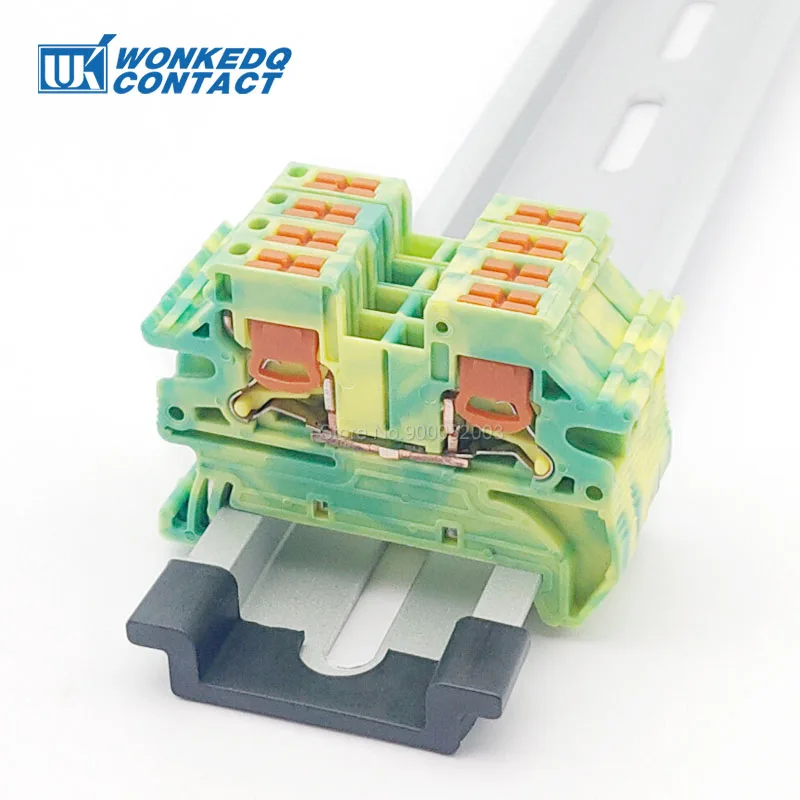

GROUND TERMINAL |
|
|
|
|
MARKER CARRIER |
MARKER CLIPS |
DIN RAIL |
END STOP |

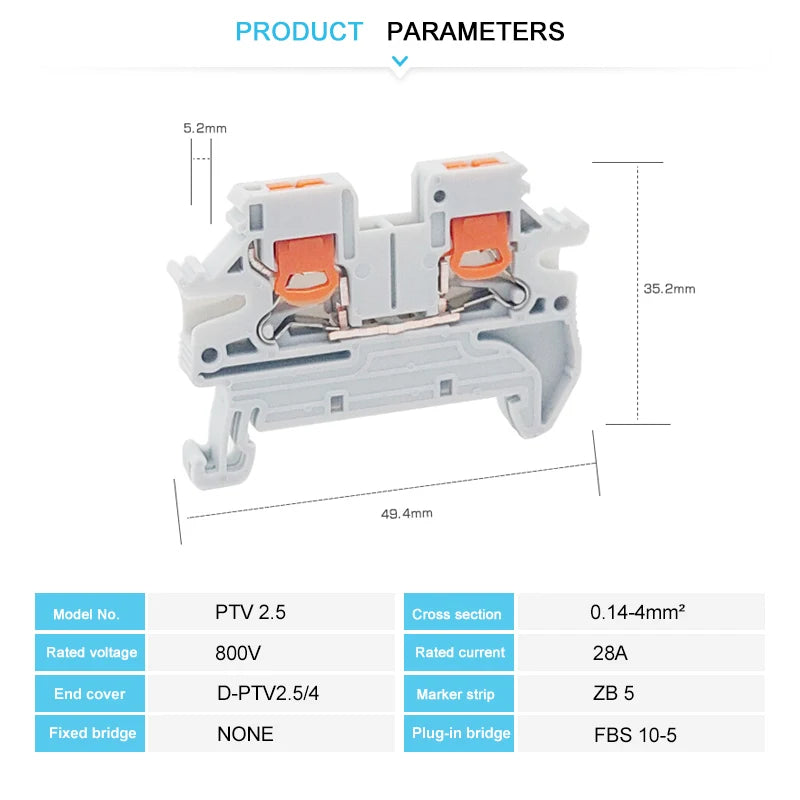

TECHNICAL PARAMETERS
Model Number |
PTV 2.5 |
Color |
Grey, Blue, other color can be customized |
Length/Height/Wide (mm) |
49.5/35.2/5.2 |
Connection method |
Push-in connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
800V/24A |
Cross section, solid/soft Cable |
0.14-4 mm²/ 0.14-2.5 mm² |
Conductor Size |
26-12 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Certification |
CE/RoS/CQC/ISO 9001 |
